Using AL Table Proxy Generator Tool to create Integration Table(s) in Business Central for the Dataverse table

This is the Sixth post in the series. If you want to go to previous post click here.

From the series of steps this post is dedicated to Step-5:

As a fifth Step we will Create Integration Table(s) in Business Central for the Dataverse table created in Step-4

When table(s) are present in Microsoft Dataverse, but not in Business Central, this tool can be run to generate integration or proxy table(s) for the specified table(s).

The AL Table Proxy Generator tool you can find in AL Language extension by name altpgen.exe in the equivalent folder [C:\Users\ashwi\.vscode\extensions\ms-dynamics-smb.al-7.4.502459\bin\]

Run PowerShell ISE as Administrator

Change to folder containing altpgen.exe

Above command should be single line, I have break for clarity of parameters. Below is the sample command.

.\altpgen -project:"C:\Userdata\AL Project\DataVerseIntegration" -packagecachepath:"C:\Userdata\AL Project\DataVerseIntegration\packagecachepath" -serviceuri:"https://xxxxxxxxxxx.crm8.dynamics.com/" -entities:cr95d_prospects -baseid:50125 -tabletype:CDS

When you run the command, it will ask for authentication, provide and continue.

Once you Accept the Permissions request, you can see the output of the command.

Don’t worry for warnings, Your AL file will be generated in specified folder.

Below is the sample of generated file, it is suggested to generate this file using the tool, don’t try to create manually.

table 50126 "CDS cr95d_Prospects"
{
  ExternalName = 'cr95d_prospects';
  TableType = CDS;
  Description = '';

  fields
  {
    field(1;cr95d_ProspectsId;GUID)
    {
      ExternalName = 'cr95d_prospectsid';
      ExternalType = 'Uniqueidentifier';
      ExternalAccess = Insert;
      Description = 'Unique identifier for entity instances';
      Caption = 'Prospects';
    }
    field(2;CreatedOn;Datetime)
    {
      ExternalName = 'createdon';
      ExternalType = 'DateTime';
      ExternalAccess = Read;
      Description = 'Date and time when the record was created.';
      Caption = 'Created On';
    }
    field(4;ModifiedOn;Datetime)
    {
      ExternalName = 'modifiedon';
      ExternalType = 'DateTime';
      ExternalAccess = Read;
      Description = 'Date and time when the record was modified.';
      Caption = 'Modified On';
    }
    field(24;statecode;Option)
    {
      ExternalName = 'statecode';
      ExternalType = 'State';
      ExternalAccess = Modify;
      Description = 'Status of the Prospects';
      Caption = 'Status';
      InitValue = " ";
      OptionMembers = " ", Active, Inactive;
      OptionOrdinalValues = -1, 0, 1;
    }
    field(26;statuscode;Option)
    {
      ExternalName = 'statuscode';
      ExternalType = 'Status';
      Description = 'Reason for the status of the Prospects';
      Caption = 'Status Reason';
      InitValue = " ";
      OptionMembers = " ", Active, Inactive;
      OptionOrdinalValues = -1, 1, 2;
    }
    field(28;VersionNumber;BigInteger)
    {
      ExternalName = 'versionnumber';
      ExternalType = 'BigInt';
      ExternalAccess = Read;
      Description = 'Version Number';
      Caption = 'Version Number';
    }
    field(29;ImportSequenceNumber;Integer)
    {
      ExternalName = 'importsequencenumber';
      ExternalType = 'Integer';
      ExternalAccess = Insert;
      Description = 'Sequence number of the import that created this record.';
      Caption = 'Import Sequence Number';
    }
    field(30;OverriddenCreatedOn;Date)
    {
      ExternalName = 'overriddencreatedon';
      ExternalType = 'DateTime';
      ExternalAccess = Insert;
      Description = 'Date and time that the record was migrated.';
      Caption = 'Record Created On';
    }
    field(31;TimeZoneRuleVersionNumber;Integer)
    {
      ExternalName = 'timezoneruleversionnumber';
      ExternalType = 'Integer';
      Description = 'For internal use only.';
      Caption = 'Time Zone Rule Version Number';
    }
    field(32;UTCConversionTimeZoneCode;Integer)
    {
      ExternalName = 'utcconversiontimezonecode';
      ExternalType = 'Integer';
      Description = 'Time zone code that was in use when the record was created.';
      Caption = 'UTC Conversion Time Zone Code';
    }
    field(33;cr95d_ProspectName;Text[100])
    {
      ExternalName = 'cr95d_prospectname';
      ExternalType = 'String';
      Description = 'Required name field';
      Caption = 'Prospect Name';
    }
    field(34;cr95d_ContractAmount;Decimal)
    {
      ExternalName = 'cr95d_contractamount';
      ExternalType = 'Money';
      Description = '';
      Caption = 'Contract Amount';
    }
    field(37;ExchangeRate;Decimal)
    {
      ExternalName = 'exchangerate';
      ExternalType = 'Decimal';
      ExternalAccess = Read;
      Description = 'Exchange rate for the currency associated with the entity with respect to the base currency.';
      Caption = 'Exchange Rate';
    }
    field(38;cr95d_contractamount_Base;Decimal)
    {
      ExternalName = 'cr95d_contractamount_base';
      ExternalType = 'Money';
      ExternalAccess = Read;
      Description = 'Value of the Contract Amount in base currency.';
      Caption = 'Contract Amount (Base)';
    }
    field(39;cr95d_Probability;Integer)
    {
      ExternalName = 'cr95d_probability';
      ExternalType = 'Integer';
      Description = '';
      Caption = 'Probability';
    }
    field(40;cr95d_Stage;Option)
    {
      ExternalName = 'cr95d_stage';
      ExternalType = 'Picklist';
      Description = '';
      Caption = 'Stage';
      InitValue = Lead;
      OptionMembers = Lead, Opportunity, Won, Lost;
      OptionOrdinalValues = 256080000, 256080001, 256080002, 256080003;
    }
    field(42;cr95d_ForcastedRevenue;Decimal)
    {
      ExternalName = 'cr95d_forcastedrevenue';
      ExternalType = 'Money';
      Description = '';
      Caption = 'Forcasted Revenue';
    }
    field(43;cr95d_forcastedrevenue_Base;Decimal)
    {
      ExternalName = 'cr95d_forcastedrevenue_base';
      ExternalType = 'Money';
      ExternalAccess = Read;
      Description = 'Value of the Forcasted Revenue in base currency.';
      Caption = 'Forcasted Revenue (Base)';
    }
  }
  keys
  {
    key(PK;cr95d_ProspectsId)
    {
      Clustered = true;
    }
    key(Name;cr95d_ProspectName)
    {
    }
  }
  fieldgroups
  {
    fieldgroup(DropDown;cr95d_ProspectName)
    {
    }
  }
}

Create a Page for above table

page 50122 "CDS Prospect List"
{
    Caption = 'CDS Prospect List';
    PageType = List;
    SourceTable = "CDS cr95d_Prospects";
    Editable = false;
    ApplicationArea = All;
    UsageCategory = Lists;
    RefreshOnActivate = true;

    layout
    {
        area(Content)
        {
            repeater(Group)
            {
                field("No."; Rec.cr95d_ProspectsId)
                {
                    Caption = 'No.';
                    ApplicationArea = All;
                }
                field(Name; Rec.cr95d_ProspectName)
                {
                    Caption = 'Name';
                    ApplicationArea = All;
                }
                field(Stage; Rec.cr95d_Stage)
                {
                    Caption = 'Stage';
                    ApplicationArea = All;
                }
                field("Probability"; Rec.cr95d_Probability)
                {
                    Caption = 'Probability';
                    ApplicationArea = All;
                }
                field("Contract Amount"; Rec.cr95d_ContractAmount)
                {
                    Caption = 'Contract Amount';
                    ApplicationArea = All;
                }
                field("Contract Amount (Base)"; Rec.cr95d_contractamount_Base)
                {
                    Caption = 'Contract Amount (Base)';
                    ApplicationArea = All;
                }
                field("Forecast Revenue"; Rec.cr95d_ForcastedRevenue)
                {
                    Caption = 'Forecast Revenue';
                    ApplicationArea = All;
                }
                field("Forecast Revenue (Base)"; Rec.cr95d_forcastedrevenue_Base)
                {
                    Caption = 'Forecast Revenue (Base)';
                    ApplicationArea = All;
                }
                field("Exchange Rate"; Rec.ExchangeRate)
                {
                    Caption = 'Exchange Rate';
                    ApplicationArea = All;
                }
            }
        }
    }
}

You can read more about AL Table Proxy Generator Tool from Microsoft docs

AL Table Proxy Generator

Now you are good to proceed with Next Step.

You can jump to Next Step from here.

Business Central, Dataverse, Power Apps, Synchronize, Table

Create Custom table in Dataverse/ Power Apps

This is the Fifth post in the series. If you want to go to previous post click here.

From the series of steps this post is dedicated to Step-4:

As a fourth Step we will Create New Table(s) in Dataverse, below is the structure of the table.

This table will be used to Sync Data between Business Central and Dataverse.

Define all required columns. Same as we have done in Business Central, in previous post.

Next we will define Business Rule, This will make Probability field as mandatory.

See the properties of each component.

Sample data for the table.

If you are not comfortable with creating table in Power Apps environment, I will add one post step wise step how this table was created and data was uploaded in this table. Once this series is completed, will provide link to that post here.

Now you are good to proceed with Next Step.

You can jump to Next Step from here.

AL, Business Central, Dataverse, Enum, Extension, Integration, Page, Table

Create Custom table & page in Business Central

This is the Fourth post in the series. If you want to go to previous post click here.

From the series of steps this post is dedicated to Step-3:

As a third Step we will Create New Table(s) and Page(s) in Business Central

Below are the AL code for Prospect table, Prospect card page & Prospect list page that will be created in Business Central via Extension, used for Integration with Dataverse.

Table in BC to Integrate from Dataverse

table 50120 "Prospect"
{
    DataClassification = ToBeClassified;
    DrillDownPageID = "Prospects";
    fields
    {
        field(1; "No."; Code[20])
        {
            DataClassification = ToBeClassified;
        }
        field(2; "Name"; Text[50])
        {
            DataClassification = ToBeClassified;
        }
        field(5; "Probability"; Integer)
        {
            DataClassification = ToBeClassified;
        }
        field(6; "Contract Amount"; Decimal)
        {
            DataClassification = ToBeClassified;
        }
        field(7; "Contract Amount (Base)"; Decimal)
        {
            DataClassification = ToBeClassified;
        }
        field(8; "Stage"; Enum "Stage Type")
        {
            DataClassification = ToBeClassified;
        }
        field(11; "Forecast Revenue"; Decimal)
        {
            DataClassification = ToBeClassified;
        }
        field(12; "Forecast Revenue (Base)"; Decimal)
        {
            DataClassification = ToBeClassified;
        }
    }

    keys
    {
        key(key1; Name)
        {
            Clustered = true;
        }
    }
}

Card Page for above Table

page 50121 "Prospect Card"
{
    Caption = 'Prospect Card';
    PageType = Card;
    UsageCategory = Administration;
    SourceTable = "Prospect";

    layout
    {
        area(Content)
        {
            group(General)
            {
                field("Name"; Rec."Name")
                {
                    ApplicationArea = All;
                }
                field(Probability; Rec.Probability)
                {
                    ApplicationArea = All;
                }
                field(Stage; Rec.Stage)
                {
                    ApplicationArea = All;
                }
            }

            group(Details)
            {
                field("Contract Amount"; Rec."Contract Amount")
                {
                    ApplicationArea = All;
                }
                field("Contract Amount (Base)"; Rec."Contract Amount (Base)")
                {
                    ApplicationArea = All;
                }
                field("Forecast Revenue"; Rec."Forecast Revenue")
                {
                    ApplicationArea = All;
                }
                field("Forcast Revenu (Base)"; Rec."Forecast Revenue (Base)")
                {
                    ApplicationArea = All;
                }
            }
        }
    }
}

List Page for above Table

page 50120 Prospects
{
    PageType = List;
    ApplicationArea = All;
    UsageCategory = Lists;
    SourceTable = Prospect;
    Caption = 'Prospect List';
    CardPageId = "Prospect Card";
    Editable = false;

    layout
    {
        area(Content)
        {
            repeater(GroupName)
            {
                field(Name; Rec.Name)
                {
                    ApplicationArea = All;

                }
                field(Probability; Rec.Probability)
                {
                    ApplicationArea = All;

                }
                field("Contract Amount"; Rec."Contract Amount")
                {
                    ApplicationArea = All;

                }
                field("Contract Amount (Base)"; Rec."Contract Amount (Base)")
                {
                    ApplicationArea = All;

                }
                field(Stage; Rec.Stage)
                {
                    ApplicationArea = All;

                }
                field("Forcast Revenue"; Rec."Forecast Revenue")
                {
                    ApplicationArea = All;

                }
                field("Forcast Revenue (Base)"; Rec."Forecast Revenue (Base)")
                {
                    ApplicationArea = All;

                }
            }
        }
    }
}

Enum for field Stage

enum 50120 "Stage Type"
{
    Extensible = true;
    AssignmentCompatibility = true;

    value(0; "Lead") { Caption = 'Lead'; }
    value(1; "Opportunity") { Caption = 'Opportunity'; }
    value(2; "Won") { Caption = 'Won'; }
    value(3; "Lost") { Caption = 'Lost'; }
}

Now you are good to proceed with Next Step.

You can jump to Next Step from here.

AL, BC18, Business Central, Code, Codeunit, Combinations, Development Tips, Dimension, Dynamics 365, Environment, Events, Extension, Extension Package, How To, Online, Page, Sandbox, Subscription, Table, Tip & Tricks, VS Code

Walkthrough Extension Development in Online Sandbox – Business Central

I have my Sandbox environment as below:

Details of the Sandbox as below:

Connecting VS code to above environment.

When you try to Publish the extension, it will ask you to authenticate.

Copy the Link and open in the browser and paste the code in the box as shown below.

Next it will ask for your Online Instance User Id & Password provide it and on confirmation close the page. It will start deploying the extension.

In this walkthrough I am using below scenario:

Requirement is we need to be able to define some code for dimension combinations. Let me say it will be Sales Code, you can choose name of your choice, this is not Salesperson code.

I am assuming these dimensions will follow the sequence as defined on my General Ledger Setup as below:

On Sales Order & Invoice user should be able to select this Sales Code and dimensions should be populated on order accordingly.

For tracking purpose this Sales Code should flow to Posted Sales Invoice and Customer Ledger.

So, Let’s Start with the development process:

Step-1 We will Create the Table

Here is the code for LookupDimValue Function, it will set filter for Dimension Code on Dimension Value table, as per the Dimension No passed. (1 is for Shortcut Dimension defined on General Ledger Setup, similarly for other 8 dimensions)

Step-2 Next, we will create the Page for this Setup

Step-3 Next, we will add the Sales Code field to all required Tables & Pages

Here is the code for AddDim Function. It is assumed that only combination provided in Sales Code Setup will be used. If you have defined Default dimensions or Combinations, those need to be preserved else this code will overwrite them. You will have to find the Data Set Entry, store them in temporary table used in below code and then add all the dimensions from the setup.

When you Select Sales Code on the Order or Invoice it will populate all the dimensions defined in the Setup.

Code for other Tables & Pages

Step-4 Next, we need to take care to flow the Sales Code to the Ledger and Posted documents.

For posted documents we need not to worry it will flow automatically provided we have defined the fields on same Id.

However, for ledger we will require to use Events to pass the data to their destinations. In this case we are only passing to Customer Ledger Entry. For this we will create a Codeunit.

To Add Event Subscriptions, Use the new Shift+Alt+E shortcut in the AL code editor to invoke a list of all events.

Search for the even you are looking for.

When pressing Enter to select an event entry, an event subscriber for the event will be inserted at the cursor position in the active AL code editor window.

Here is the Codeunit Code:

This is not the final code; much more can be done or need to be done before it can be delivered to customer for their use. Purpose of this walkthrough was to demo the way we can customize the solution using extensions and publishing to Online tenant in Sandbox.

Hope you enjoyed the information. Will come with more similar information in my next posts. Till then keep exploring, learning and sharing your knowledge with others.

Remain safe, take care of your loved ones, put your mask, maintain safe distance and don’t forget to get vaccinated.

AL, Business Central, C/AL, Development Tips, Extension Package, How To, Information, Modern Development Tool, Tip & Tricks, V2

AL Basics – Part 3 [Table Continued]

In last post we saw basics of how to Create Table and created a Loadout Point Table.

Today we will continue from where we left in previous post. If you missed previous post you can find here AL Basics – Part 2.

We will create one New Table say Working Calendar Time Slot. Since no new concept used in this table so without explanation I will directly share the final structure of this Table. I am using this table in today’s next Table which I will be creating later below.

So here is the structure of this Table.

TAB2-1

Now coming to today’s topic. Creating Field Triggers & Functions.

I will be creating a new table Appointment Calendar Setup.

Here is the structure of same, and explanation follows after screen shot.

TAB2-2

In this Table the Loadout Point field TableRelation to the Loadout Point table that we created in our previous post.

Similarly the field Start Working Hrs. & End Working Hrs. field, OnValidate() trigger is implemented which call to a function/procedure CreateTimeSlot() defined in this table itself.

Field Start Working Days & End Working Days is defined with option type.

When user Enters the Start Working Hrs. & End Working Hrs. we will create the Time Slot for that Location (Loadout Point).

Finally I have created a local procedure in the table, which as per the information entered it creates the Time Slot in Table we created above Working Calendar Time Slot. Also see I have created few local variables to the function of different types. You can see there is no difference in writing the code, it follows same syntax as in our Navision C/AL. Advanced coding options and what’s new will discuss separately in future posts.

Till here we have our basic structure of our Extension. We will see how to design page in our next post.

We will come with more advance points on Table Later as we proceed in completing our Extension. There is lots of things to share on this topic but sometime later in future posts. First Let us cover all Object Types.

AL, Business Central, Development Tips, Extension Package, How To, Information, Modern Development Tool, Tip & Tricks, V2

AL Basics – Part 2 [Table]

Today we will discuss about tables.

To Create a Table Create filename.al file, as one shown in example. Folder is not compulsory, I am using to just keep my files in arranged way.

TAB-1

You can choose File -> New File or press 【ctrl】+ N or using tool button on Project folder as shown above. Give meaningful name and .al extension is a must.

Once you get your file in editor, you can start coding from scratch or can take the help of Snippet ttable and continue their after.

Let see what happens if I type ttable in the editor window.

TAB-2

As you start typing the assist window will guide you with available options.

You can press anywhere you will get the list of options available for that section.

We will see this in a while.

First let understand different sections in table object where you will write your codes, or set properties etc.

You can remove your Global Variable and Trigger section if you have nothing to define or not required in your case.

TAB-3

Suppose you are in Table property section and want to know what all properties are available in AL you can place your cursor at desired place and press 【ctrl】+ < Space Bar>. A list of options available will be shown to you, you can select required property and complete your syntax.

TAB-4

Similarly you can do in other sections of table structure also, you will always get the list of things you can do in that section.

Let’s complete our one sample table, with few Table Property, Fields and Fields Property, Keys.

TAB-5

This is a sample Table.

I have commented DrillDownPageID & LookupPageID Table Properties as this page are not available at this stage will add later.

I have defined Caption & TableRelation for my field Depot.

Caption for Field “Slot Duration” also Option String and caption for same.

I have defined Primary Key for the table.

I have defined the fieldgroup for Dropdown.

At this moment I don’t want to define Global Variables and Triggers for this table so removed.

We will get into more details in our next post.

PowerBI.com

Microsoft Power BI for Beginners Table of Content

In March I have written few posts on Power BI keeping in mind who are beginners.

In case you have missed here I present the link to all those posts here below.



Microsoft Power BI – Part – I

Introduction to Power BI and Creating Report from Excel Data, Local Files.

Microsoft Power BI – Part – II

Introduction to few Features of Power BI

Microsoft Power BI – Part – III

Power BI Desktop, Creating Dataset & Reports from In Premise Database installation

Microsoft Power BI – Part – IV

Power BI Gateway usage

Microsoft Power BI – Part – V

Scheduling Refresh of Dataset & Report created using In Premise Database

Microsoft Power BI – Part – VI

Power BI Microsoft NAV Content Pack

Microsoft Power BI – Part – VII

Power BI Mobile App

Microsoft Power BI – Part – VIII

Power BI Content Pack

Microsoft Power BI – Part – IX

Power BI Publisher for Excel

Microsoft Power BI – Part – X

ANALYZE IN EXCEL

I will come up with more features and other important details in my future posts.

You can find lots of materials on Power BI here : https://powerbi.microsoft.com/en-us/

https://powerbi.microsoft.com/en-us/learning/

PowerBI-85











Corfu Navision 2016, Development Tips, Extension Package, Information, Tip & Tricks

Which Properties are Restricted in Extension Packages

For Overview, please see my earlier posts

Introducing Extensions in Microsoft Dynamics NAV 2016

Which Object types you can Include & Restrictions applicable to C/AL code in Extension Packages

Restricted Properties on Existing Page Modifications

You cannot change the values for the following properties for existing Microsoft Dynamics NAV pages in an extension.

  • AccessByPermission
  • AssistEdit
  • AutoSplitKey
  • CardPageID
  • CharAllowed
  • ContainerType
  • ControlAddIn
  • Data Type
  • DataLength
  • DateFormula
  • DelayedInsert
  • DeleteAllowed
  • DrillDown
  • DrillDownPageID
  • Editable
  • ExtendedDatatype
  • FieldClass
  • GroupType
  • ID
  • InsertAllowed
  • LinkedObject
  • Lookup
  • LookupPageID
  • MaxValue
  • MinValue
  • ModifyAllowed
  • MultipleNewLines
  • Name
  • NotBlank
  • Numeric
  • PageType
  • PartType
  • PasteIsValid
  • Permissions
  • PopulateAllFields
  • RefreshOnActivate
  • SourceExpr
  • SourceTable
  • SourceTableTemporary
  • SourceTableView
  • SubType
  • SystemPartID
  • TableRelation
  • TableType
  • TestTableRelation
  • ValidateTableRelation
  • ValuesAllowed

Most of these are typically not properties changed through customization as they can have a negative effect on the Microsoft Dynamics NAV deployment.





Restricted Properties on Existing Table Modifications

You cannot change the values for the following properties for existing tables and fields in an extension.

Table Properties Field Properties
  • Name
  • DataPerCompany
  • Permissions
  • LookupPageID
  • DrillDownPageID
  • PasteIsValid
  • LinkedObject
  • TableType
  • Name
  • AccessByPermission
  • Compressed
  • Data Type
  • DataLength
  • DateFormula
  • ExtendedDataType
  • FieldClass
  • MaxValue
  • MinValue
  • NotBlank
  • Numeric
  • Owner
  • SQL Data Type
  • SubType (BLOB)
  • TableIDExpr
  • TableRelation
  • TestTableRelation
  • ValidateTableRelation
  • ValuesAllowed Width

You can add table keys, but you cannot delete or modify existing keys.

You can add fields to a table group, but you cannot remove fields or groups.

Corfu Navision 2016, Functional Tips

Unit Cost Field, Item Table

Contains the cost per unit of the item.

UnitCost-1

Depending on what you selected in the Costing Method field, the Unit Cost field is filled as follows:

  • If the costing method is Standard, then the field is grayed and non-editable.
  • If the costing method is FIFO, LIFO, Specific, or Average, then the unit cost is calculated as follows: Unit cost = inventory value of items on hand (expected cost + invoiced cost) / quantity on hand

If the costing method is FIFO, LIFO, Specific, or Average, then the Unit Cost field is updated in the following cases:

  • When the item is cost-adjusted, automatically or by the Adjust Cost – Item Entries batch job.
  • During the posting of purchase invoices, output, or positive adjustment if one of the following conditions is true:
    • The net invoiced quantity of the item changes from negative or zero to positive.
    • The current unit cost is zero.

If one of these conditions is true, then the Unit Cost field is updated with the value in the Last Direct Cost field on the item card.

Note The Unit Cost field is not updated if the current unit cost is higher than zero and the new unit cost is zero. A unit cost of zero is considered an exception from regular business. Therefore, the current unit cost is retained to provide the last known, relevant value. This exception applies even if the existing inventory has been revalued to zero.

If the item uses the costing method Average, then you can choose the field to open the Average Cost Calc. Overview window, which shows all the source value entries that are used to calculate the average cost, grouped and summarized by average cost period.





Data Model, Development Tips, Excel, How To, Power View, PowerPivot

Set Table Behaviour in PowerPivot

You can set the default table behaviour, which Power View uses to automatically create report labels for the table.

This becomes useful when you create visualizations from the same table, perhaps for many different reports.

Open the Excel Workbook we created in our earlier post. Create a Power View report

We use default table behaviour in the next few steps, so let’s set it now.

Open Medals Table in Data Model, select Advanced > Reporting Properties > Table Behaviour. A window appears where you can specify table behaviour.
ExcelData-33

  • In the Table Behavior window, the Row Identifier is the column that contains only unique keys and no blank values. This is often the table’s primary key, but not compulsory to be any other field which satisfy this property. You have to select a Row Identifier before making other selections in the window. Select MedalKey as the Row Identifier.
  • In the Keep Unique Rows section, select AthleteID.

Fields you select here have row values that should be unique, and should not be aggregated when creating Pivot Tables or Power View reports.
Note: If you have trouble with reports that don’t aggregate how you want them, make sure that the field you want to aggregate is not selected in the Keep Unique Rows fields.

  • For Default Label, select a key that should be used as a default report label. Select Sport.
  • For Default Image, leave the selection as [No Column Selected], since you haven’t added images yet. The Table Behavior window looks like the following screen.

ExcelData-34

  • On the Power View sheet in Excel, select the table you created in the previous post Set field defaults in PowerPivot

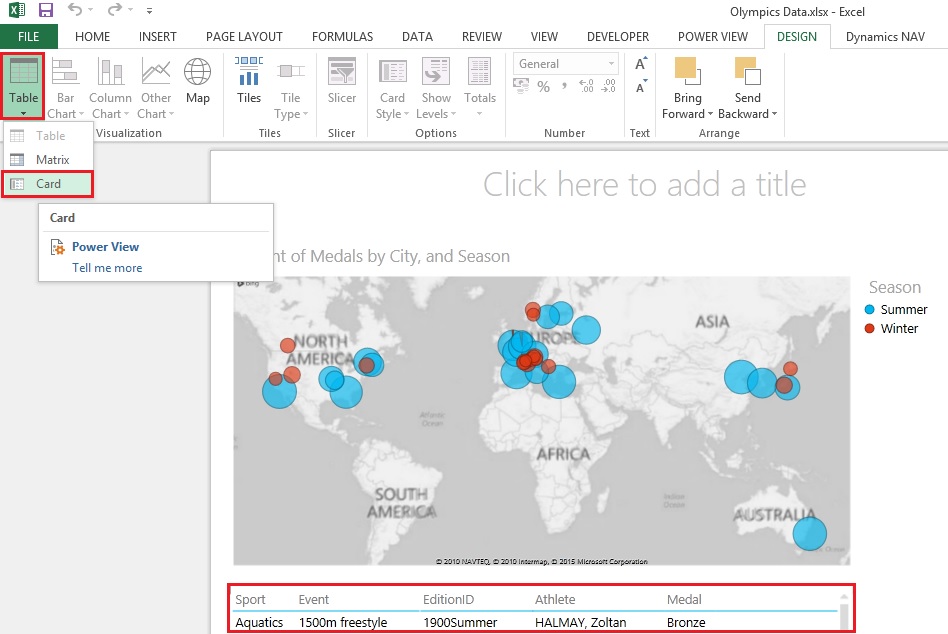

  • From the ribbon, select DESIGN -> Table -> Card.

ExcelData-35

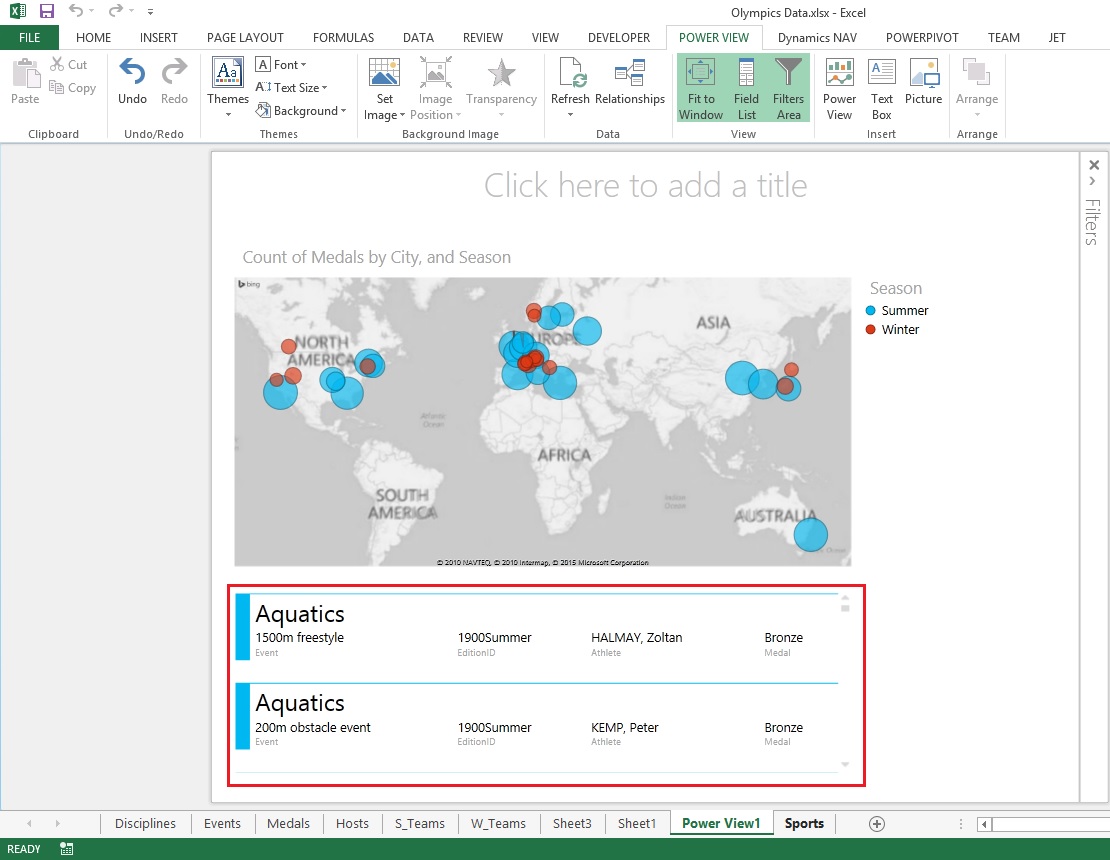

  • The table you created changes into a collection of Cards; the data is the same, but the visualization of the data has changed. The table now looks like the following screen.

ExcelData-36

Notice that the Sport field is larger than the rest, and appears as a heading for each card. That’s because we set Sport as the Default Label in the Table Behavior window when we were in Power Pivot.

I will come up with more details in my upcoming posts. Till then Stay Tuned, Keep Learning & Practicing.
