Creating a Wizard Page in AL for Business Central

In today’s post we will learn to create Wizards.

First Let us understand why we use wizards.

  • We can define wizard as series of user input screens or steps.
  • You can show/hide options for each step based on previous step selection that is relevant to complete any setup process.
  • User can navigate between steps with Next and Previous buttons.
  • In Web Client it shows buttons with specific styling.
  • We define Page with type NavigatePage.
  • Plays crucial part in Assisted Setup.

Without going into much theory let’s start creating a Wizard Page.

Step: 1 –

Create a New Page of type NavigatePage.

CI-1

Create *.al file in your VSCode Project, you can use tpage snippet.

Set the Unique available ID in your database and Extension.

Give meaningful name to your file.

Set the PageType property to NavigatePage.

Set SourceTable property to the base table in my case “Company Information”

Step: 2 –

Add a Group for each Step you wish for your Setup, in my case I am using 3 Step.

Create Global variable CurrentStep of type Integer, this will help making decision on which step you are currently and act accordingly.

CI-2

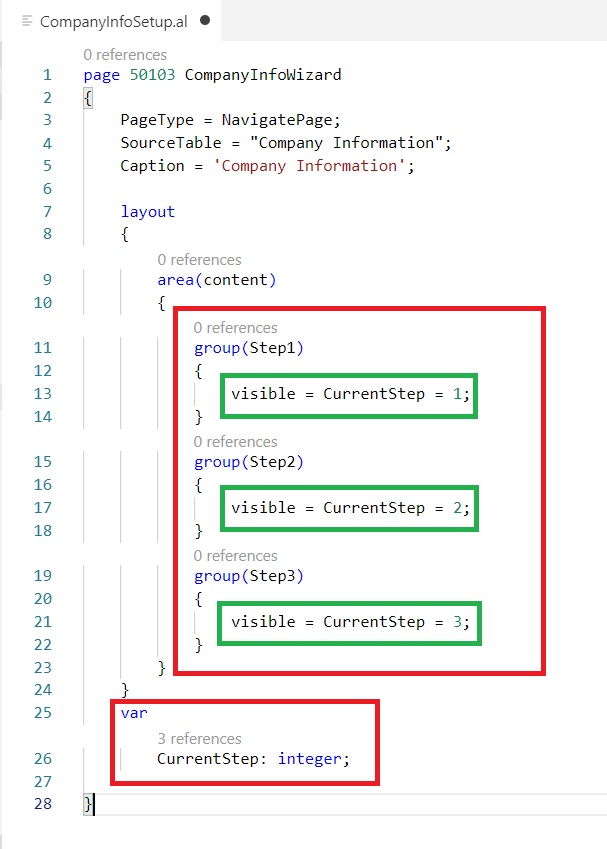

On each Group, Set the Visible property with an expression:

Visible – CurrentStep = 1;

And so on.

Step: 3 –

Create a sub-group inside the steps and set the suitable Caption.

Set InstructionalText to provide guidance

Add fields to the sub-group

CI-3

And similarly to other groups.

Step: 4 –

Add three actions to facilitate navigation.

For each action, set the InFooterBar property to true.

When this is used in combination of PageType NavigatePage, it will show action as navigation buttons.

CI-4

Step: 5 –

Create 3 global variables as Boolean, say ActionBackAllowed, ActionNextAllowed, ActionFinishAllowed

On each action, set the Enabled property to the appropriate global variable.

Set the Image property of your actions:

Back : PreviousRecord

Next : NextRecord

Finish : Approve

CI-5

Step: 6 –

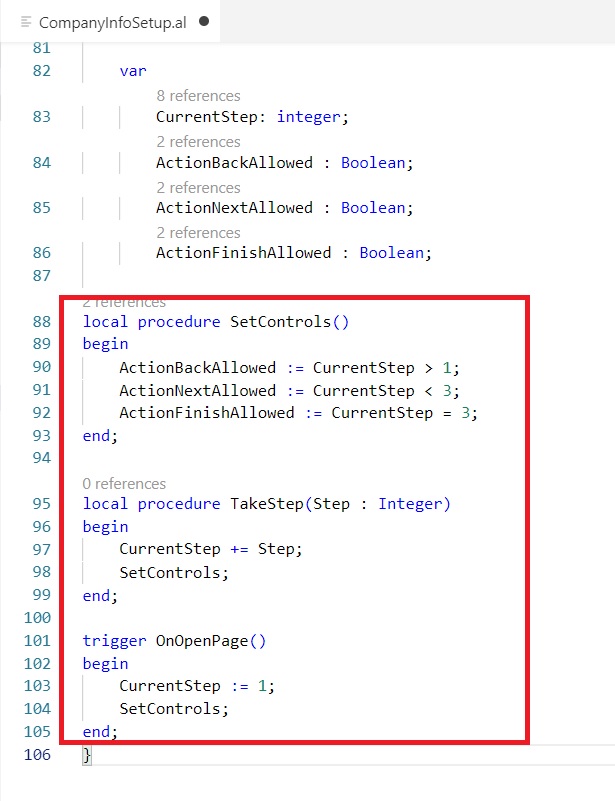

Create function/procedure to SetControls, TakeStep and Set starting values in the OnOpenPage trigger.

CI-6

Step: 7 –

Now we will add OnAction trigger to the navigation actions.

CI-7

Step: 8 –

Now we will create 2 global record variables for Media Repository table and for the Media Resources table.

CI-8

Step: 9 –

Now add 2 new groups above Step 1 Group.

Add field to each group.

Set source expression to the Image field of the Media Resources variables.

Set ShowCaption property to false.

CI-9

You see error for TopBannerVisible let’s define a global variable of type Boolean.

Step: 10 –

Now we will Add a function to Load the top banner images.

Call this function from OnInit trigger.

CI-10

We are done with our base design of Wizard.

Now time to deploy and Test.

For testing purpose let’s hook it to some page and see the result.

Although it is not correct place but for testing purpose let’s add to our existing page created in earlier post “Loadout List” page and test the output.

CI-11

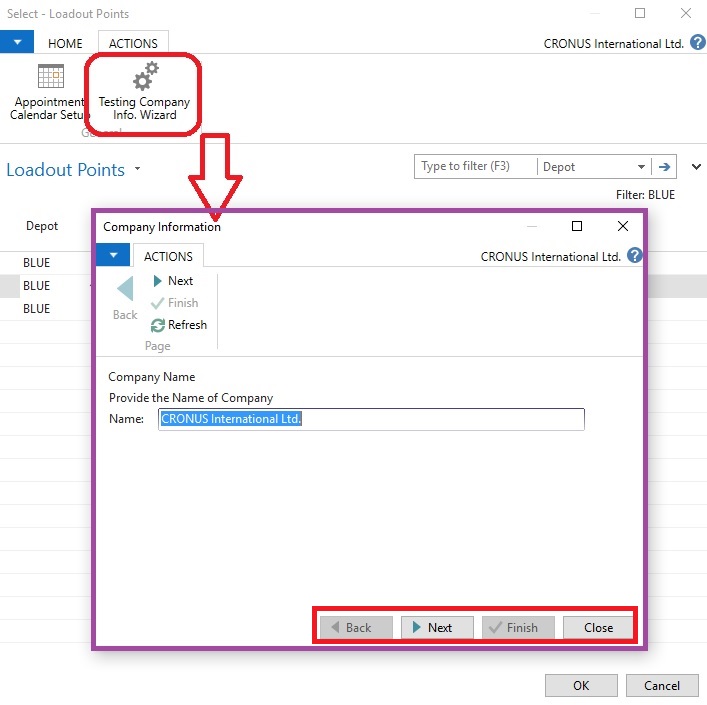

Added new action on “Loadout List” Page, just to check the output. I will come up with Assisted Setup in our next post and hook it there.

Now we will Build and Deploy the Extension and review what we created.

CI-12

Access your Loadout Point List Page from Sales Order Line and Run the Wizard.

Let’s run the same from the Web Client.

ci-13

ci-14

I will come up with linking this Wizard Page to Assisted Setup in our next post.

AL Basics – Part 4 [Page]

Today we will see how to create pages in AL.

Before we dive into it lets have some basic concept for Pages.

If you navigate in Navision you may be familiar with page types we have in Navision.

Types of Page

  • Card Page
  • List Page
  • CardPart Page
  • ListPart Page
  • Worksheet Page
  • Document Page
  • RoleCenter Page
  • Confirmation Dialog Page
  • ListPlus Page
  • StandardDialog Page
  • Navigate Page

All above pages are just how we design and use them for specific purpose, I will not go in details what type of page is used for what purpose you can find them in any document or already familiar with.

When we design pages we should have idea of Page Controls

Different Page Controls you have on pages are:

  • Actions
  • Content Area
  • Factbox Area
  • RoleCenter Area

All controls are placed in pages using below arrangement

Type SubType

Container Content Area
  FactBox Area
  RoleCenter Area

Group Group (Fast Tabs – on Card Pages)
  Repeater (List Pages)
  CueGroup (Rolecenter Pages)
  FixedLayout
  Grid layout

Field Data from Table

Part Display another Page, Chart, System defined features

Lets understand from below Customer List Page

Pag-1

Let’s create our First Page.

To Create a Page First we will create a File .al.

In Editor we fill type snippet tpage

You will get the options available, select Page of type list, we are going to create List Page.

Pag-2

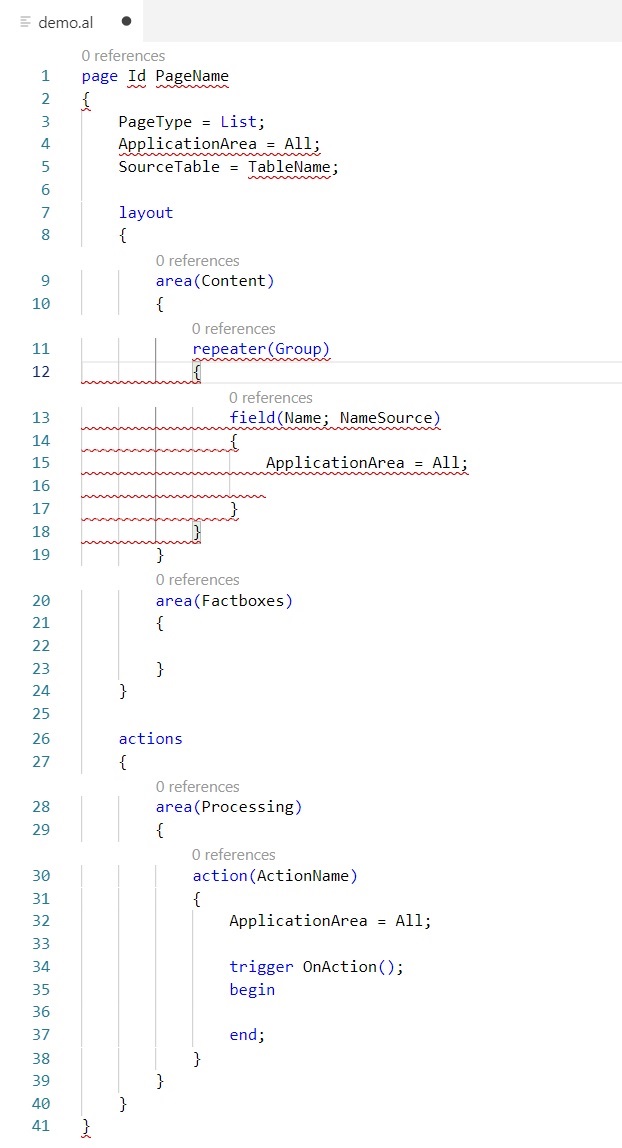

Basic structure of the Page is given to you as below

Pag-3

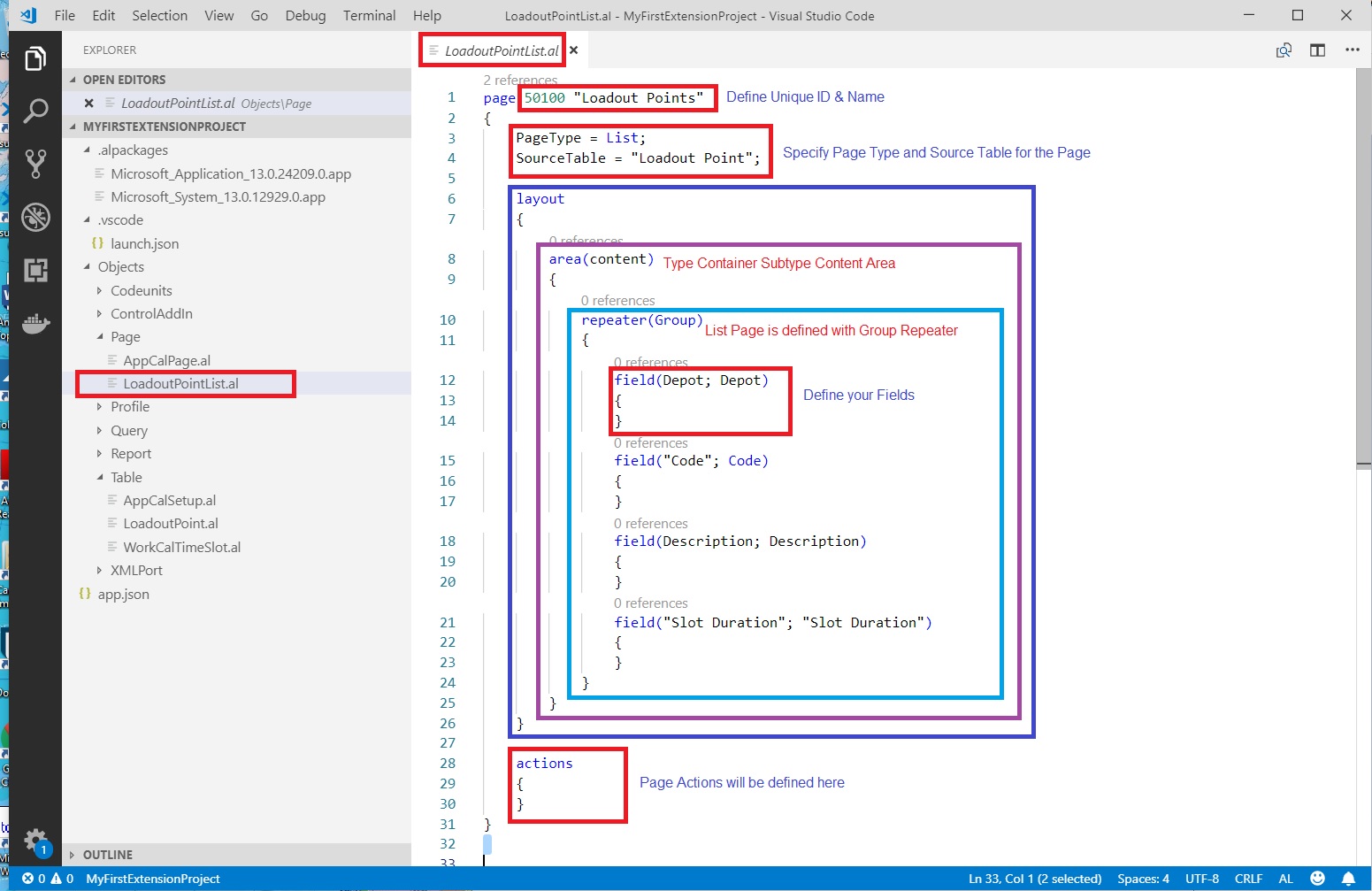

Lets create our LoadoutPointList Page on Table Loadout Point table created in previous post.

Pag-4

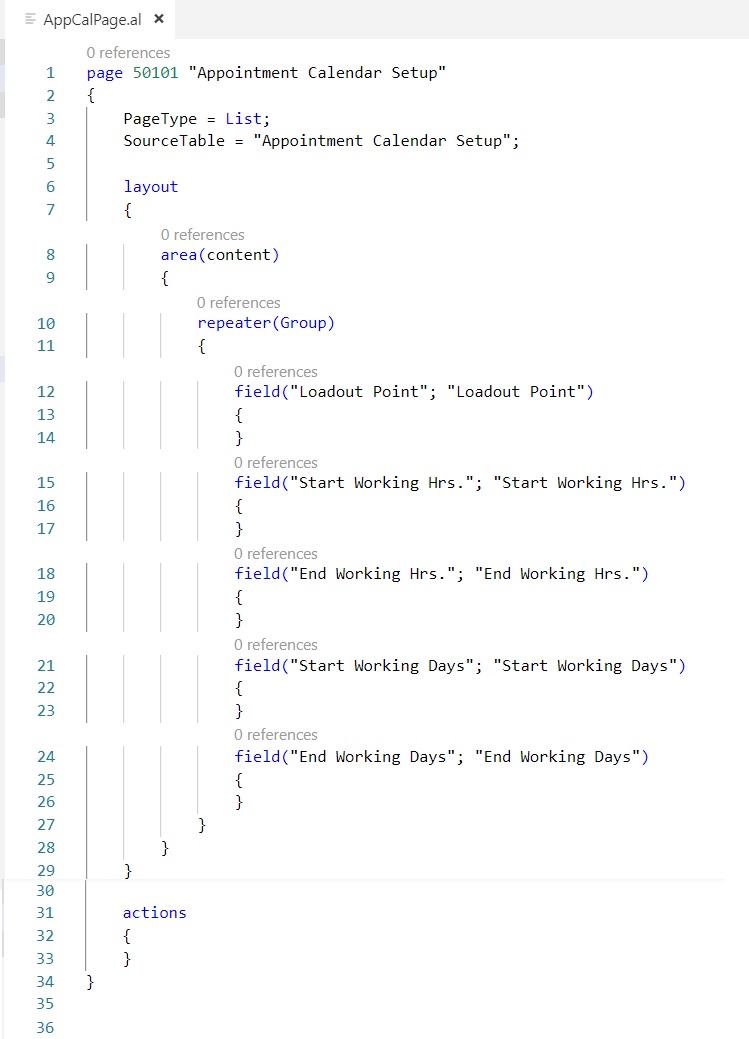

Similarly we will create a Appointment Calendar Setup List Page, final code as below:

Pag-5

Similarly you can design Card Page Also:

I am not creating Page from scratch but will show you few properties, triggers from standard Page e.g.:- Cost Type Card

Pag-6

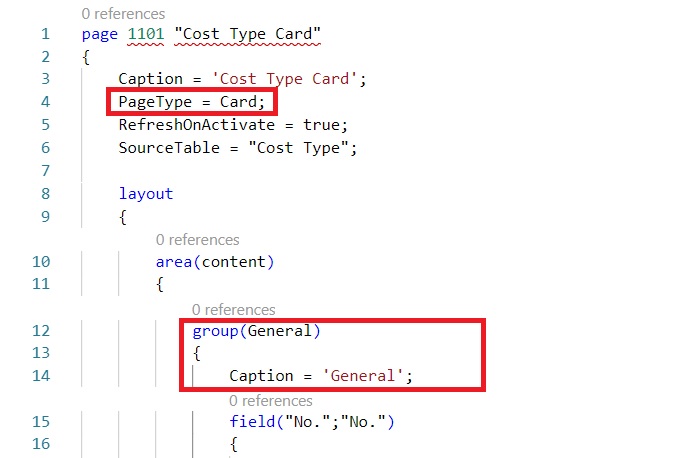

PageType you need to define as Card.

For FastTab you need to define group.

Pag-7

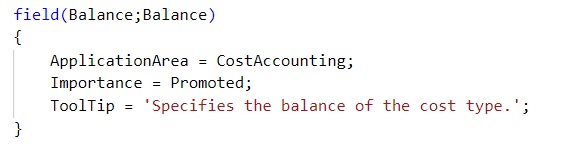

Above is the example of few properties for field control on Page.

Pag-8

To add factboxes to the page you define area(factboxes).

Here systempart for Links & Notes is added.

Pag-9

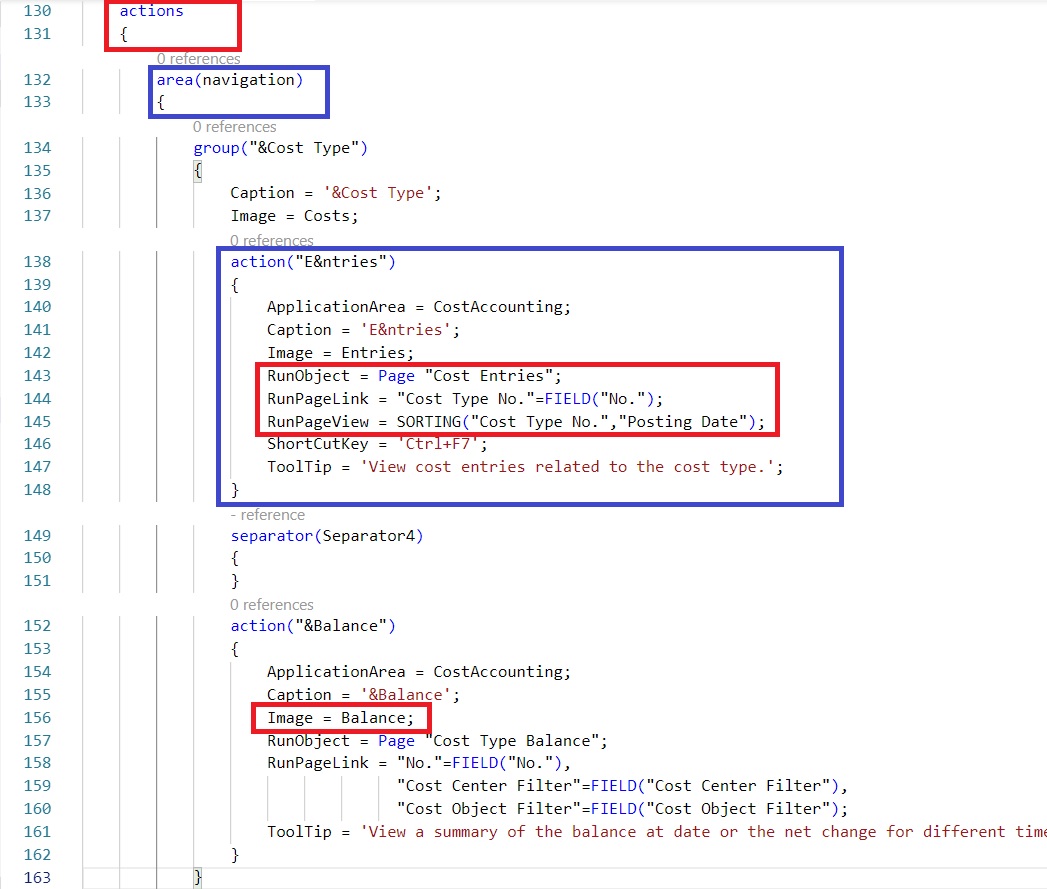

Above is actions to the page. Few properties how to define.

Pag-10

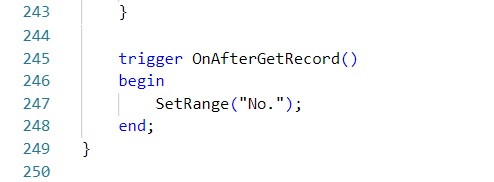

Above is the Page triggers.

Complete code for each objects is not possible to include in post.

But I will give to some tips using which you can explore equivalent AL Code and tryout them.

Suppose you want to see any feature how implemented in Customer Card.

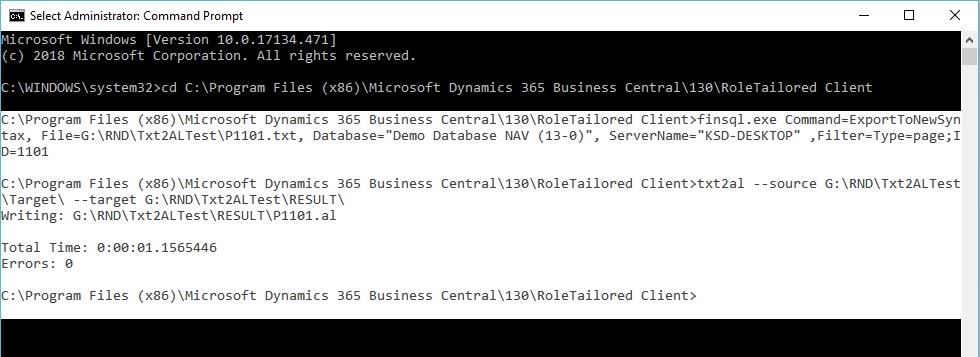

Export that object as text, and convert using txt2al for equivalent al code.

You can refer back to my previous post Quick Start with Extensions for Business Central

Similar method I have explained in this post.

Pag-11

We will explore few more possibilities and Extending to existing Table & Pages in our upcoming post.



How can I Drill Down to any Page dynamically using Table ID

There is a requirement from my one of my reader.

Today I will discuss on how we can dynamically open page by using table ID only.

As you are aware to open Page we require PageID and Table record.

PAGE.RUN(Number [, Record] [, Field])

For this we will use RecordRef and minimum requirement is table have Page ID for Lookup and Drilldown defined else we will get error when try to open the page.



Create a Function name it say ShowRecords.

Define 2 Variables as:

Name rRef

DataType RecordRef

Name varRecRef

DataType Variant



We require VARIANT because PAGE don’t accept RecordRef datatype.

PAGE.RUN(Number [, Record] [, Field])

Also define Parameter to the function to receive Table ID.



In function you write below code:



rRef.CLOSE;

CLEAR(rRef);

//rRef.OPEN(No [, Temp] [, CompanyName])

rRef.OPEN(TableID,FALSE,COMPANYNAME);

//You can apply filters also if required before accessing the Page

varRecRef := rRef;

//PAGE.RUN(Number [, Record] [, Field])

PAGE.RUN(0,varRecRef);



Now where you require you can call your function as ShowRecords(18)

This will Open Customer List Page to show the records from table.

I will show good use of same in my upcoming post. One use can be to design Navigate Page but few limitations will apply, wait for my next post.



That’s all for this post, I will come up with more details in my upcoming posts, till then keep exploring and learning.





Creating Views – to Save Filtered Lists in NAV

Do you Know you can save the Page as View with filters.

Many of time we access to Page and apply same set of Filters to fetch our data. You can save the same for quick retrival of data applying the filters automatically in future access.

You save the Page with Filters as View.

Let us see small example how to achieve it.

First we will open the List Page in my case i am having one customized Customer List.

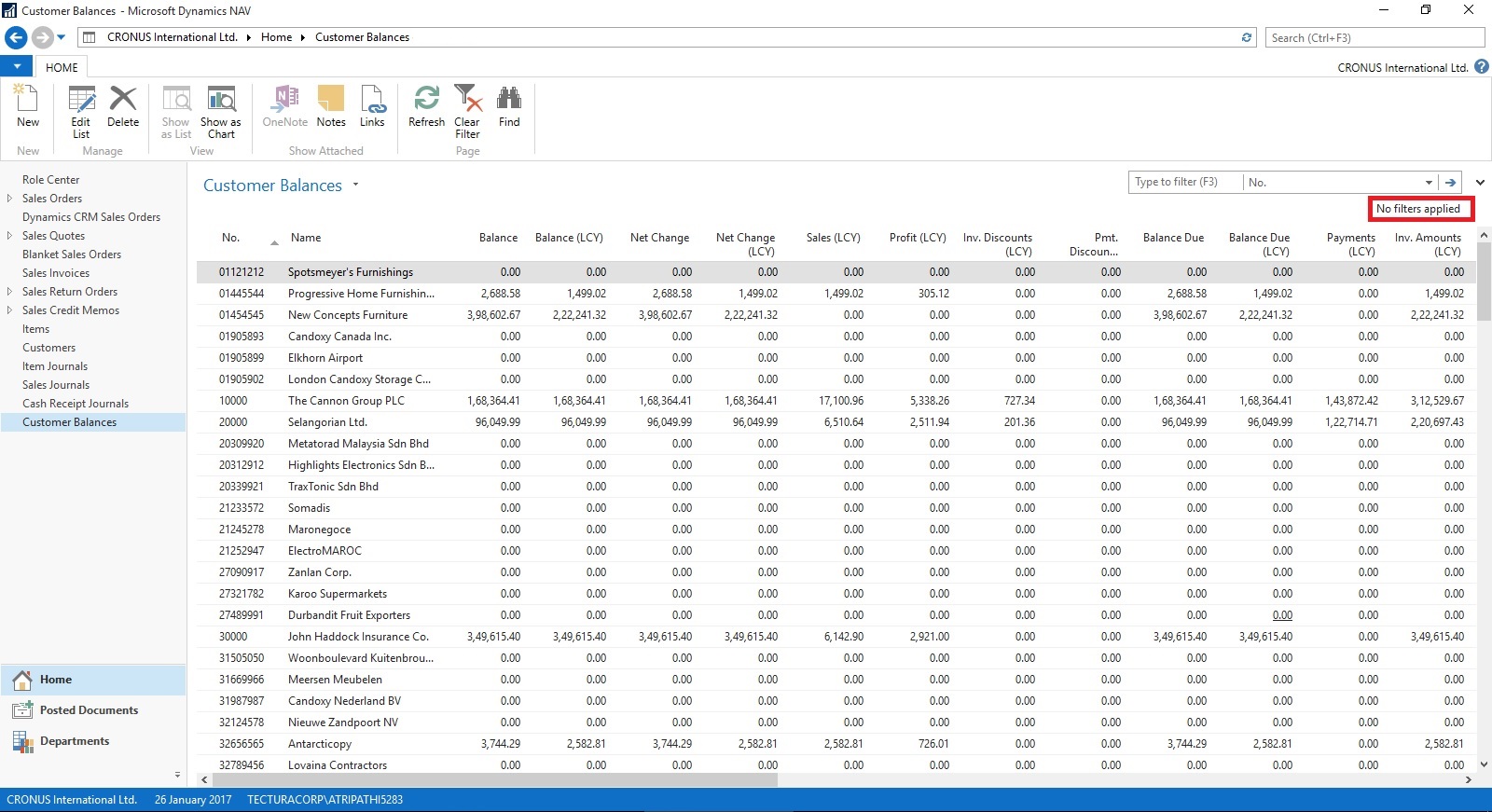

FilteredView-1

Suppose this is the Page which i use for Balances Retrival each month and on daily basis.

I Enter Filter as Balance > 5000 & Current Month Filter whenever i wish to check balances for my reporting or followup purpose.

For Date Filter i use (-CM..CM) sothat when i open this view next month it takes the appropriate Filter for that month.

FilteredView-2

Click on the Page Name post applying all the required Filters.

Select Save View as.

Give the Name for the View.

Select the Location to save the View.

On Confirmation respond as Yes.

FilteredView-3

Your View will be Saved, You can create as much Views as desired using different Filters.

FilteredView-4

Small and good Feature.

What you are waiting for give it a try.

I will comeup with more information in my upcoming posts, till then keep exploring and learning.





Setting different Column Layout for different users

On Community Forum i came across one requirement for opening Page with different column on Page for different users.

Here i have given an demo how can be done, but will require some tweaking to achieve the actual result.

I have copied the Customer List Page and removed extra fields.

Playing with columns1

I have added one Field above Repeater so that we can decide which format we want to see on screen. User can enter 1/2/or any other value.

I have created two more variables Set1 and Set2 to show/hide fields as per the value entered in SetSelect.

Assigned the Set1 & Set2 to few columns on the Page Fields to Property Visible.

Set1 to Responsibility Center, Location Code & Currency Code.

Set2 to Post Code, Country/Region Code, Phone No. & Fax No.

Added code on OnOpenPage Trigger to select Default page Format when Page is Opened. This code you will modify as per your requirement like check the User and assign the default Value.

Added Code to SetSelect-OnValidate Trigger to select the required format of Page. You need to modify the code as per your requirement.

Playing with columns2

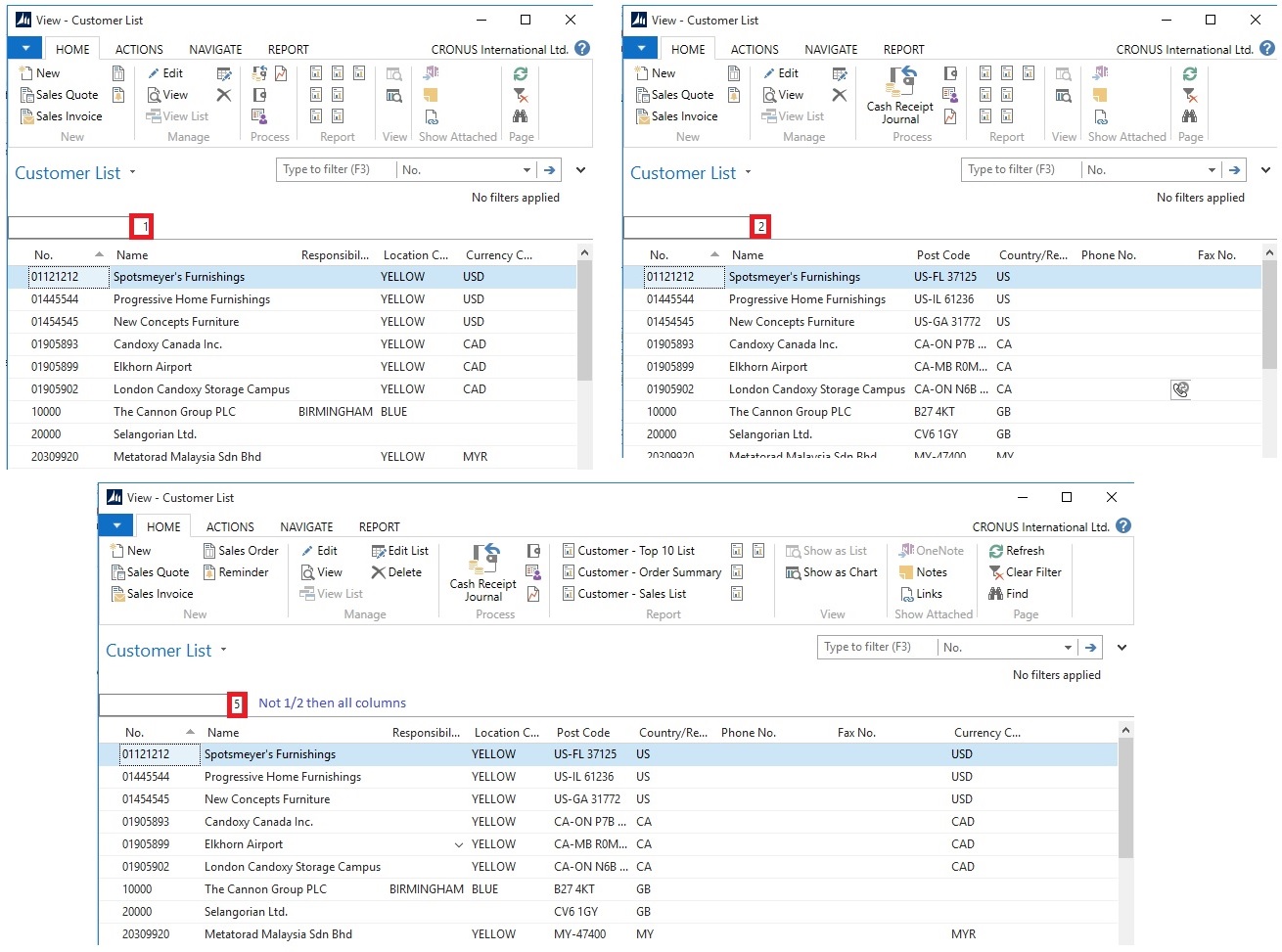

In this demo if user enter value for SetSelect and you will get different view of same page.

Do some research and design one as per your requirement, this way we need not to create different Pages for different Users. Same Page can serve you different purpose if limited to only different views.

I will come with more information in my upcomming posts.

Till then keep browsing and learning.
