AL Basics – Part 6 [Publishing & Testing Extension]

Today we will see in our post how we can Publish & Test our Extension.

To be able to follow this steps discussed below you should have gone through my earlier post and your project is ready to continue from where we left in our previous post. If yet not please follow below links and continue their after to this post.

Bare Minimum Steps to Start with fresh Extension Project for Business Central

AL Basics – Part 2 [Table]

AL Basics – Part 3 [Table Continued]

AL Basics – Part 4 [Page]

AL Basics – Part 5 [Extending Table & Page]

Since we are going to continue same project, reason why I am asking to have it as we will be referencing to the objects we created in above posts.

Let’s begin with our today’s task.

Ext-7

Now we have all required basic stuffs to Publish our Extension.

To Publish your Extension first need to Build and Package your Extension.

Although you can Package & Publish in single command, follow as you feel comfortable.

Press <Ctrl> +<Shift> + <P> to access your Command Pallet.

Ext-8

Chose AL:Package to create Package.

Ext-9

At this stage your package is ready for deployment/Publish.

Next we will Chose AL:Publish from Command Pallet.

Ext-10

This will create Package and Publish to your server as given in launch.json file.

Just previous step is optional to create Package, but it is helpful in case you want to just create a package but not publish to your server, may be you have tested and creating final package for delivery to your customer.

Whatsoever, we are now ready to test our Package/Extension.

You may get below error:

The request for path /BC130/dev/metadata failed with code InternalServerError. Reason: NetFx40_LegacySecurityPolicy is enabled and must be turned off in the Microsoft.Dynamics.Nav.Server.exe.config file.

Locate the file from installation folder in my case: C:\Program Files\Microsoft Dynamics 365 Business Central\130\Service

Ext-11

Set value to false save and replace the config file.

Restart your Service, and try publishing again.

You may get error:

Error: Could not open the specified startup page. Please check that the server configuration key PublicWebBaseUrl has been properly set.

That’s not a problem you can ignore it, actually it is trying to open WebClient and launch the Object you specified in launch.json file.

Open your Client and browse Extension Management.

Ext-12

Your Extension is published, & you can check the information that you provided in app.json file is visible.

Now Let’s Test our Extension.

If you remember we have integration point on Sales order line, so to see our extension in action we need to check our Sales Order Line.

Ext-13

You can see the fields that we added in our Page Extension is visible on Sales Order Line.

You can add your data and start using the extension.

If you remember we also added Appointment Calendar Setup Page to the action on Loadout Point Page.

Ext-14

If you check the Objects in your database you will not find these objects in Object designer, so where is my all data stored & saved.

To find them you need to check in your SQL database.

Your Tables are name defined with postfix your application ID.

Sales Line Extended Table data.

Ext-15

Loadout Point Table data.

Ext-16

Working Calendar Time Slot.

Ext-17

Appointment Calendar Setup.

Ext-18

Hope you enjoyed Publishing and playing around with your First Extension.

I will come up with more advanced features and tips on Extensions in upcoming posts.

Keep Learning, remain safe and stay tuned for more in upcoming posts.

Advertisements

Database Replication – Part IV

This post is in continuation to my earlier post. Please check if you missed.

Database Replication – Part I

Database Replication – Part II

Database Replication – Part III

As committed in this post we will continue to cover practical approach, Next step from last post.

Publishing Data Using Transactional Replication

We will create a transactional publication using SQL Server Management Studio to publish a filtered subset of the Item table in the Nav 2018 sample database. We will also add the SQL Server login used by the Distribution Agent to the publication access list (PAL).

To create a publication and define articles

Connect to the Publisher in SQL Server Management Studio, and then expand the server node.

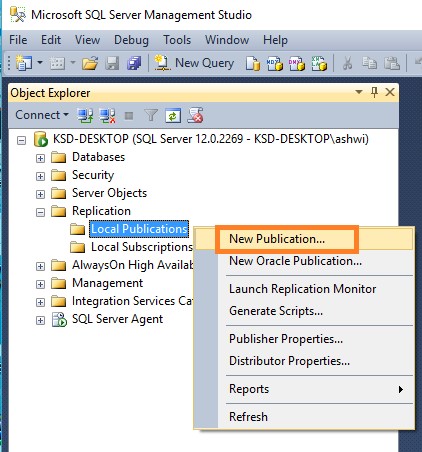

Expand the Replication folder, right-click the Local Publications folder, and click New Publication.

DR-24

The Publication Configuration Wizard launches.

DR-25

On the Publication Database page, select Nav 2018 database, and then click Next.

DR-26

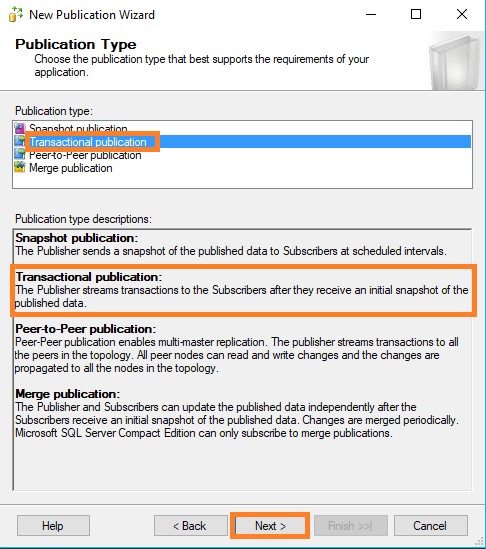

On the Publication Type page, select Transactional publication, and then click Next.

DR-27

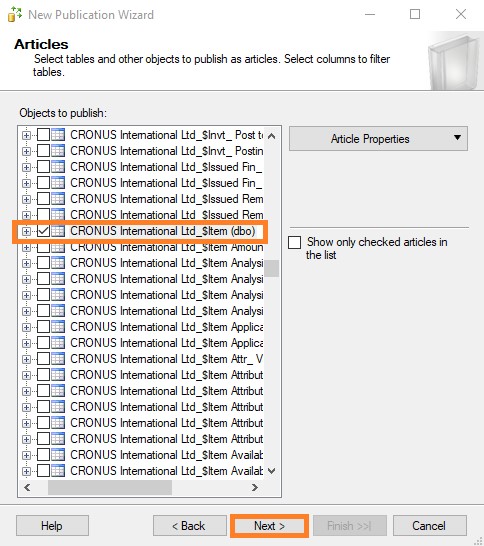

On the Articles page, expand the Tables node, select the check box for table CRONOUS International Ltd_$Item (dbo). Click Next.

DR-28

On the Filter Table Rows page, click Add.

In the Add Filter dialog box, click the Replenishment System column, click the right arrow to add the column to the Filter statement WHERE clause of the filter query, and modify the WHERE clause as follows:

WHERE [Replenishment System] = 1

Click OK,

DR-29

Click Next.

DR-30

Select the Create a snapshot immediately and keep the snapshot available to initialize subscriptions check box, and click Next.

DR-31

On the Agent Security page, clear Use the security settings from the Snapshot Agent check box.

Click Security Settings for the Snapshot Agent, enter <Machine_Name>\repl_snapshot in the Process account box, supply the password for this account, and then click OK.

DR-32

Repeat the previous step to set repl_logreader as the process account for the Log Reader Agent

DR-33

Click Finish.

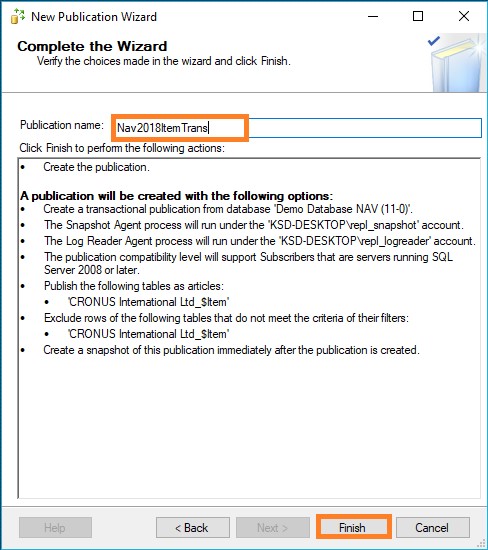

On the Complete the Wizard page, type Nav2018ItemTrans in the Publication name box, and click Finish.

DR-34

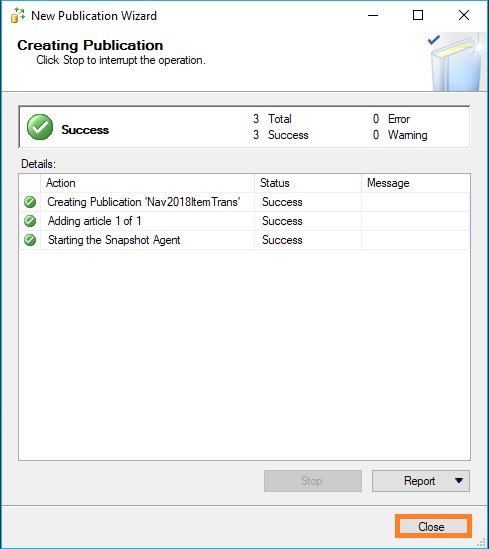

After the publication is created, click Close to complete the wizard.

DR-35

To view the status of snapshot generation

  • Connect to the Publisher in SQL Server Management Studio, expand the server node, and then expand the Replication folder.

In the Local Publications folder, right-click Nav2018ItemTrans, and then click View Snapshot Agent Status.

DR-36

The current status of the Snapshot Agent job for the publication is displayed. Verify that the snapshot job has succeeded.

DR-37

To add the Distribution Agent login to the PAL

  • Connect to the Publisher in SQL Server Management Studio, expand the server node, and then expand the Replication folder.
  • In the Local Publications folder, right-click Nav2018ItemTrans, and then click Properties.
  • The Publication Properties dialog box is displayed.
  • Select the Publication Access List page, and click Add.

In the Add Publication Access dialog box, select <Machine_Name>\repl_distribution and click OK. Click OK.

DR-38



We will discuss Next step in our upcoming post.



Publishing the Jet Data Source Codeunit to the Web Service

Microsoft Dynamics NAV 2015 includes a “Jet Data Source” codeunit which must be published to enable Jet Essentials or Jet Express to operate. This can be published using the Microsoft Dynamics NAV Role Tailored Client (RTC).

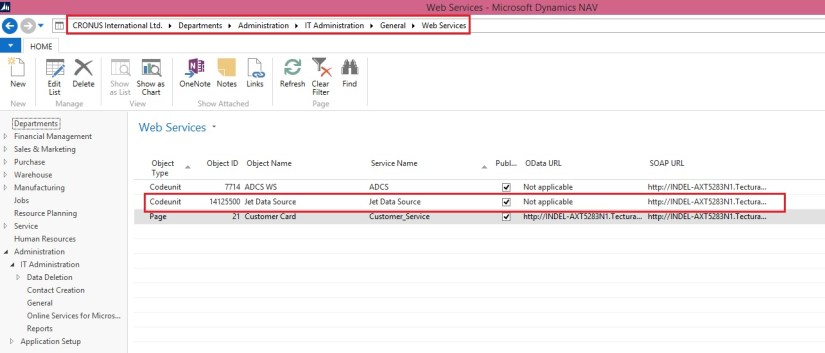

To publish this code unit, inside the RTC go to Departments > Administration > IT Administration > General and select Web Services.

JetExcel-4
Publish the Jet Data Source code unit by selecting New from the Web services ribbon

  • Object Type: Codeunit
  • Object ID: 14125500
  • Service Name: Jet Data Source
  • And check the box to publish.
  • Click OK

Checkout Upcoming posts for more information.

Installing and Publishing the Jet Business Objects on the Microsoft Dynamics Server

To install the .fob file open the Microsoft Dynamics NAV Development Environment and then connect to the database.

  • Open the Object Designer (on the Tools menu, choose Object Designer)
  • Import the .fob file (on the File menu, choose Import)
  • Locate the import file (Jet Reports Objects.fob), and then choose Open.
  • The .fob file includes modified objects. When prompted choose Yes to import all objects.
  • Verify that no objects are to be skipped. Objects are skipped if the version of the object in the database is later than the one in the .fob file.
  • Choose the OK button to import the .fob file.

The .fob file installs a set of business objects in the range of 14125500-14125504 and Table 14125600.
JetExcel-3
Jet Express users must have Read, Insert, Modify, Delete (RIMD-) permissions to Table 4125600 “Jet Cancellation”.

Checkout upcoming posts for more information.
