Web Services – Business Central Part- 2

Today in this post we will continue from where we left our previous post, if you missed or wish to have a look you can find her in this link.

Web Services – Business Central Part- 1

We saw in our previous post, you expose an OData service that can be accessed from a URL by using a web browser or any other HTTP client.

You need the URL of the OData page or query web service

https://server:webserviceport/serverinstance/oData/web service”

If you use the attribute ?$format=atom you will get an AtomPub document

https://KSD-DESKTOP:7748/BC130/OData/Customers?$format=atom

If you use the attribute ?$format=json you will get an JSON document

https://KSD-DESKTOP:7748/BC130/OData/Customers?$format=json

You can obtain service metadata documents for either page or query web services.

https://ksd-desktop:7748/BC130/OData/$metadata

SOAP Web Services

If your client requests another transport protocol than HTTP or HTTPS, then you can use SOAP as it also supports, for example, SMTP.

Microsoft is heavily investing in REST and OData, and certainly with the online apps like Power BI, PowerApps, and others.  So at this point SOAP isn’t the primary choice for web services anymore.

We can find the available SOAP web services at the same page where we define the OData web services.

If we go to the search box and then search for web services, This page is used to enable access to OData and SOAP web services.

ws-001

We could enable OData web services only with the object types of query and pages, and for SOAP web services, we can only enable it for pages and codeunits and not for queries.

For example soap url for my Customers Service will be as below:

https://KSD-DESKTOP:7747/BC130/WS/CRONUS%20International%20Ltd./Page/Customers

You can find some post related to consuming web service and working with web service for older versions but it can be used with business central too.

Exposing & Consuming the Web service from & inside Navision – Part-1

Exposing & Consuming the Web service from & inside Navision – Part-2

Exposing & Consuming the Web service from & inside Navision – Part-3

Exposing & Consuming the Web service from & inside Navision – Part-4

When you are exposing your object for web service, ensure that you use GUIAllowed function to supress the UI. Encapsulate the code that could cause in error, not your entire code.

Also the exceptions must be handled in order to facilitate that your web service don’t end the execution unexpectedly.

You must check with the GuiAllowed function when you are using one of the following dialog functions:

Close, Confirm, Error, Open, StrMenu, Update

The Message function is the only dialog function that doesn’t cause an exception.

Other keywords that you shouldn’t use are:

Page.Run, Page.RunModal, Activate, Report.Run, Report.RunModal, Hyperlink, File.Upload, File.Download

Hope you got some insight on Web Services.

I will come up with more features in other posts, till then keep exploring and learning, and take care of yourself.

Advertisements

Web Services – Business Central Part- 1

You can use web services in Microsoft Dynamics 365 Business Central to expose data to the outside world.

You can use web services to get data from Microsoft Dynamics 365 Business Central and use it in other applications.

Any application, programing language or program that can work with XML and/or JSON for example: – Power BI, Microsoft PowerApps, a custom .NET program, etc. can connect to Microsoft Dynamics 365 Business Central fetch the available data.

A web service can also be used to create new or update existing data in the application.

Both XML (Extensible Markup Language) and JSON (JavaScript Object Notation) are open-standard file formats that are readable by humans. They are used to send information between clients over web services.

In this post we will discuss some terminology and differences between SOAP and OData. We will also learn on how to configure these services in Microsoft Dynamics 365 Business Central.

SOAP relies on HTTP(S), SMTP, FTP for message negotiation and transmission.

The most common type of messaging pattern in SOAP is the Remote Procedure Call (RPC), where one network node (the client) sends a request message to another node (the server), and the server sends a response message to the client. It uses SOAP envelope, which defines the message structure and how to process it.

A SOAP service exposes a WSDL (Web Services Description Language) file that describes how the service can be called, what parameters it expects and what data structure it returns. This file is an XML based document, and is targeted to be read by machines, not by humans.

OData (Open Data Protocol) is an open protocol that is designed to use and query RESTful APIs. An API (Application Programming Interface) is a set of routines and protocols that is used to communicate between different software components.

OData is built upon REST services and can be used to query REST services. By providing extra query parameters to a URL, you can for example limit or filter the result set.

SOAP exposes a WSDL document, OData exposes an EDMX document, which contains metadata for all the published web services.

You can see all the available OData web services by going to the search box and search for web services.  This page is used to enable access to OData and SOAP web services.

ws-001

OData web services can only be used with object types pages and queries, not with codeunits.  There are two versions of OData you can use, version 3 and version 4.  Version 4 is an enhanced version, and important to know is that version 4 returns JSON where version 3 returns AtomPub documents which are XML documents.

From this window you can add new or manage existing Web Services.

It is simple 2 Step task Add new object give service name and enable Publish checkbox. You will get your OData and/or SOAP URL.

For example: – object type page can be used in OData and in SOAP web services.

Let us explore the Web-Service Urls. For test purpose, I have created a Service with the name Customers for Page Customer Card.

https://ksd-Desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)/Customers

When we open, for example, our Customers web service, we can have a look at the URL.

First we have our server name and the port it’s using.  “https://ksd-Desktop:7748”

Then we have our instance name, which in our case is BC130.

Then our OData version, so version 4.  “ODataV4”

And then our company name, “Cronus International Ltd”.

And then finally our web service name, which is, in our case, “Customers”.

Let’s try this url, when we execute this url in our browser we get json file listing customers similar to below:


Here etag is the unique identifier of each records, it will be required when you update records, will discuss later.

If I remove my service name then:

https://ksd-desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)

{“@odata.context”:”https://ksd-desktop:7748/BC130/ODataV4/$metadata#Company/$entity”,”Name”:”CRONUS International Ltd.”,”Evaluation_Company”:false,”Display_Name”:”CRONUS International Ltd.”,”Id”:”ab76c7b4-3c72-4805-86f7-7d91a10612ce”,”Business_Profile_Id”:””}

If I remove my Company Name then:

https://ksd-desktop:7748/BC130/ODataV4/


If I open the metadata url

https://ksd-desktop:7748/BC130/ODataV4/$metadata

You will get EDMX file which shows metadata about the information in the OData web service.

ws-002

You can see some properties with our data types.  For example, if we scroll down, if we go to Customers, we have our entity type Customers, we can see some properties which our data types and max lengths.  We can also see what properties are primary key.  So this is number and so on.  So all useful information when you’re creating applications that use these OData web services.

Filtering the OData

You can set filter expression to the url few examples as below:

We will use the filter option top for limiting the result to top 5 records of customer.

After our service name, we type question mark, then the dollar sign, and then the word top equals 5.

For example :

https://ksd-desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)/Customers?$top=5

Now the query will result in only first 5 records for customer.

If we want to see next 5 records then we can append &$skip=5 on above url

https://ksd-desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)/Customers?$top=5&$skip=5

If you want to see specific customer you can modify url as:

https://ksd-desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)/Customers(‘10000’)

Please refer to EDMX file to find correct name of the fields if wants to filter on specific fields.

https://ksd-desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)/Customers(‘10000’)?$select=Name

You will get the result as below for above url query

“@odata.context”:”https://ksd-desktop:7748/BC130/ODataV4/$metadata#Company(‘CRONUS%20International%20Ltd.’)/Customers/$entity”,”@odata.etag”:”W/\”JzQ0O044eFNmcWdXV0NpYlhTZDhUdTlrdytZUmdQbWRkL2U4TzZ4UEsxNGtod0

E9MTswMDsn\””,”Name”:”The Cannon Group PLC”}

You can add other fields too by appending the url with ‘,’

Customers(‘10000’)?$select=Name,City,Address……………

As told earlier please refer to EDMX file for correct Fields Name or Property it is case sensitive.

You can remove the Primary Key from the url to get list of selected fields for all customers.

Customers?$select=Name,City,Address……………

https://ksd-desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)/Customers?$orderby=City&$select=Name,City,Address

You can use orderby to sort the data from other than Primary key, by default it is sorted by Primary Key.

You can use desc for descending sort.

https://ksd-desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)/Customers?$orderby=City desc&$select=Name,City,Address

You can use filter to filter specific field values as:

https://ksd-desktop:7748/BC130/ODataV4/Company(‘CRONUS%20International%20Ltd.’)/Customers?$filter=City eq ‘Zutphen’ or City eq ‘Atlanta’&$select=Name,City,Address

you will get output as:


You can use expressions like [filter=Balance_LCY gt 0] or [filter=Location_Filter eq ‘BLUE’] etc.

I stop here for today. We have seen how the Web Services OData can be used to query records.

We will discuss about other stuffs in our next post in more details.

Till then keep exploring and learning, see you in next post. Take Care of yourself.



Enable SOAP Services and identify connection parameters

Jet express calls Web Services (SOAP) when running reports or accessing information from

Microsoft Dynamics NAV 2015. Using the Microsoft Dynamics NAV Server Administration Tool select the instance that you want to use and check the box next to Enable SOAP Services.

If Jet Express will be used outside a secure network then SSL should be enabled for the SOAP Services to help provide security and data integrity for data communications.
JetExcel-5
From the Microsoft Dynamics NAV Server Administration Tool record the

  • Credential Type
  • Server Name
  • Instance (note: for performance reasons, it is strongly recommended that a separate instance be created solely for use by Jet Express)
  • SOAP Services Port
  • Whether SSL is enabled for SOAP Services

This information is required for configuring your data source connection in Jet Express on client machines.

Note – You cannot run both Jet Express and Jet Essentials on the same computer.

Checkout Upcoming posts for more information.

Configuring Web Services to Use SSL (SOAP and OData)

Secure Sockets Layer (SSL) is a cryptographic protocol that helps provide security and data integrity for data communications over a network.

By encrypting your Microsoft Dynamics NAV web services using SSL, you make your data and the network more secure and more reliable.

Microsoft Dynamics NAV Web Services and SSL

Microsoft Dynamics NAV supports SSL authentication for SOAP and OData web services.

The server authenticates itself to the client, but the client does not authenticate itself to the server.

When the web service client connects to the Microsoft Dynamics NAV Server instance, the server replies by sending its digital certificate to the client. This certificate contains the server’s public encryption key and the name of the authority that granted the certificate. The client verifies the certificate using the authority’s public key.

We have covered above top related to Creating and Implementing Certificates for Microsoft Dynamics NAV Server. If not seen please follow below links for better understanding:

How to create a root CA and a private key file by using the makecert.exe utility

How to create certificate revocation list for the root certification authority

How to create and install a test certificate for the Microsoft Dynamics NAV Server computer

How to grant access to the certificate’s private key to the service account for the Microsoft Dynamics NAV Server

Implementing Security Certificates.

Configuring Microsoft Dynamics NAV Web Services to Use SSL

The first step is to prepare Microsoft Dynamics NAV to use SSL. This involves configuring the relevant Microsoft Dynamics NAV Server instance to specify SSL.

The following procedure uses Microsoft Dynamics NAV Server Administration tool to configure the Microsoft Dynamics NAV Server instance.

  • Choose the Start button, and in the Search programs and files box, type Microsoft Dynamics NAV Administration, and then choose the related link.
  • In Microsoft Dynamics NAV Server Administration tool, in the left pane, under Console Root, expand the node for the Microsoft Dynamics NAV Server computer. This is typically named Microsoft Dynamics NAV (Local), which is the local computer.

The Microsoft Dynamics NAV Server instances on the computer appear in the left pane and center panes.

In the left pane, choose the relevant instance to display settings for that instance in the center pane.

UseSSL-1

  • At the bottom of the center pane, choose Edit.
  • To configure SOAP web services to use SSL, expand the SOAP Web Services tab, and then select the Enable SSL

Make a note of the port that is used by SOAP web services. You will need the port number later on in this walkthrough.

UseSSL-2

  • To configure OData web services to use SSL, expand the OData Web Services tab, and then select the Enable SSL

Make a note of the port that is used by OData web services. You will need the port number later on in this walkthrough
UseSSL-3

  • Choose Save at the bottom of the center pane.

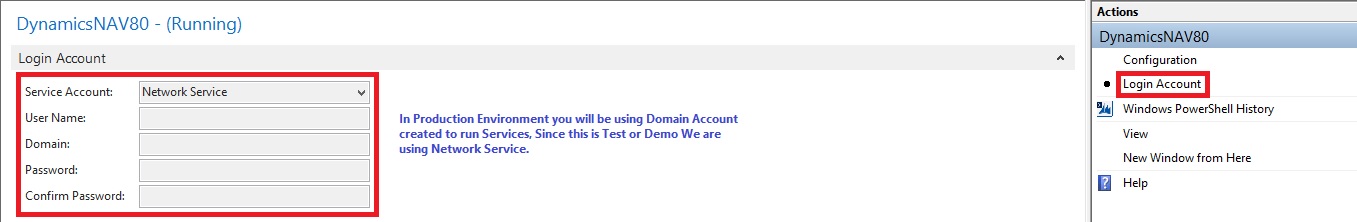

  • In the right pane, under Actions, choose Login Account.
  • Make a note of the service account information. You will need this information later on in this walkthrough.

UseSSL-4

Configuring the Access Control List and the Web Services Ports for SSL

An access control list (ACL) is part of the Windows security infrastructure and features. The ACL controls who can access resources on a computer.

Note

These procedures use the netsh tool (netsh.exe) for configuring the HTTP server. The netsh tool is supplied with Windows 7 and Windows Server 2008.

By default the netsh tool is located in the c:\Windows\System32 folder.

To configure the ACL

  1. On the computer running Microsoft Dynamics NAV Server, open a command prompt as an administrator as follows:
    1. From the Start menu, choose All Programs, and then choose Accessories.
    2. Right-click Command Prompt, and then choose Run as administrator.
  1. At the command prompt, type the following command to change to the Windows\System32 directory.

cd\Windows\System32

  1. To view the ACL for the web services ports to determine if any entries are already using the relevant host name and port, type the following command:

netsh http show urlacl

  1. Each entry is listed by the Reserved URL field, which has the format http://hostname:port. hostname is the name of the computer running the service and port is the port number the service runs on. A ‘+’ (plus sign) in the Reserved URL field represents localhost, which indicates the computer that you are working on.
  2. By default, SOAP and OData web services in Microsoft Dynamics NAV use ports 7047 and 7048, respectively, and connect to a Microsoft Dynamics NAV Server instance named DynamicsNAV80. The default reserved URL entries for these services are: http://+:7047/DynamicsNAV80/ and http://+:7048/DynamicsNAV80/.
  3. You must delete any entries that use the same port as the SOAP or OData web services.

To delete an entry, type the following command:

netsh http delete urlacl url=http://hostname:Port/NAVserver/

Substitute Port with the port number of the SOAP or OData web service and NAVserver with the name of the Microsoft Dynamics NAV Server instance.

For example, to delete the default entries for SOAP and OData, use the following two commands:

netsh http delete urlacl url=http://+:7047/DynamicsNAV80/

netsh http delete urlacl url=http://+:7048/DynamicsNAV80/

  1. To register the ports for the SOAP and OData web service with https, type the following command for each service:

netsh http add urlacl url=https://hostname:port/navserver user=DOMAIN\user

  1. Substitute the following options with the proper values:
Option Description
hostname The name of the computer running Microsoft Dynamics NAV Server. Use + for localhost.
port The port that is used by the web service.
navserver The name of the Microsoft Dynamics NAV Server instance to use with the web service. The default is DynamicsNAV80.
DOMAIN\username The domain and user name of the service account for Microsoft Dynamics NAV Server. If the service account for Microsoft Dynamics NAV Server is Network Service, then use “NT AUTHORITY\NETWORK SERVICE”.
  1. For example, if the service account for Microsoft Dynamics NAV Server has the domain ABC and the user name xyz, and then the command for the SOAP web service is as follows:

netsh http add urlacl url=https://+:7047/DynamicsNAV80 user=”NT AUTHORITY\NETWORK SERVICE”

  1. If the service account for Microsoft Dynamics NAV Server is Network Service, then the command is as follows:

netsh http add urlacl url=https://+:7047/DynamicsNAV80 user=”NT AUTHORITY\NETWORK SERVICE”

  1. To verify that your port has been registered, repeat step 3.

To configure the port to use the SSL certificate

  1. At the command prompt, type the following command to view the current port configurations:

netsh http show sslcert

  1. All port bindings to SSL certificates are listed. Each entry is indicated by the IP:port field, where IP is the IP address that uses the port (0.0.0.0 indicates all IP addresses) and port is the port number.
  2. If SSL is already configured on the address and port that you want to use for SOAP or OData web services, then use the following command to delete the entry:

netsh http delete ssl ipport=ipaddress:port

  1. Substitute ipaddress and port with the IP address and port number of the entry that you want to delete.
  2. For example, to delete the entry on the default SOAP port, use the following command:

netsh http delete ssl ipport=0.0.0.0:7047

  1. To bind an SSL certificate to the SOAP or OData web service port, use the following command:

netsh http add sslcert ipport=ipaddress:port certhash=thumbprint appid={id}

  1. Substitute the following options with the proper values:
Option Description
ipaddress The IP address that can use the web service. Use 0.0.0.0 to include all IP addresses.
port The port that is used by the web service.
thumbprint The certificate thumbprint that you obtained in previous post.
id A 32-digit hexadecimal number that identifies the Microsoft Dynamics NAV application. The id must be in the format {NNNNNNNN-NNNN-NNNN-NNNN-NNNNNNNNNNNN). If you do not know the appid, then use any value, such as {00112233-4455-6677-8899-AABBCCDDEEFF}.
  1. For example, the following command binds a certificate that has the thumbprint c0d0f27095b03d4317e219841024328cef248779 to port 7047 for all IP addresses:

netsh http add sslcert ipport=0.0.0.0:7047 certhash=c0d0f27095b03d4317e219841024328cef248779 appid={00112233-4455-6677-8899-AABBCCDDEEFF}

Imp Note: – Please replace the port and thumbprint values with your valid values.

Restart the Microsoft Dynamics NAV Server Instance

You can use the Microsoft Dynamics NAV Server Administration Tool to restart the Microsoft Dynamics NAV Server instance.

To restart Microsoft Dynamics NAV Server

  1. In Microsoft Dynamics NAV Server Administration tool, in the left pane, under Console Root, choose the Microsoft Dynamics NAV Server computer.
  2. In the center pane, choose the Microsoft Dynamics NAV Server instance that you have configured, and then in the right pane under Actions, choose Restart.
  3. After the instance restarts, close Microsoft Dynamics NAV Server Administration tool.

Verifying the Configuration

You should now be able to use web services that are encrypted with SSL. To verify this, type the following URL in the address bar for your browser.

https://localhost:7047/DynamicsNAV80/WS/services

The page lists any web services that have been published.

Important

Most of the contents you find in this blog will be either inherited from MSDN or Navision Developer IT Pro Help. Some places images are also directly taken from these sites. Purpose is simple to try those stuffs and re-produce adding few things as per my understanding to make easy understanding for others and quick reference.

Here nothing under my own brand or authorship of the content. At any point of time we are just promoting Microsoft stuffs nothing personnel with same.

Hope stuffs used here will not violate any copyright agreement with them. In case by mistake or in-intestinally it happens and the Microsoft feels these should not be used Microsoft have full right to inform me about same and will be glad to take down any such content which may be violating the norms.

Purpose is to promote Navision and share with community.

FB Profile

Like FB Page

%d bloggers like this:
