Integrating with Business Central – using Web Service

This is fourth post in this series, if you wish to see first post, you can access here.

In second post I discussed about, how to create Azure Functions, you can access here.

In previous post I discussed about, how to Integrate Azure Functions in Business Central, you can access here.

In this post we will discuss how to make available QR Image using API by exposing as Web Service.

Let’s cut the theoretical part and coming directly to the solution.

This post is very short and as an answer to query from one of the blog readers, who regularly gives feedback and suggest topic he wish from me. Sometime it is not possible to write post for every query, but I try to pick some which I find interesting. Converting any topic into post is quite time taking, solution can be of 10 mins but presenting same in form of blog takes 2-3 hours, sometimes even more.

Some time appropriate environment is not available where I can put the solution and take screenshots to present as blog.

Since this topic is part of current series, I am writing posts on, so I was able to easily pick this topic.

Requirement is to add capability to get QR Image we generated in our previous posts using Web Service/ API/ OData/ JSON Base64Text.

To get this working we will first create a Codeunit with appropriate methods and expose it as Web Service.

Step – 1.

Create Codeunit & Add below method.

Step – 2

Publish above Codeunit as Web Service.

Step – 3

Copy SOAP URL

[SOAP URL]

https://api.businesscentral.dynamics.com/v2.0/1e4fc386-962e-4a20-8364-d5aeb65e2485/Test/WS/CRONUS%20USA%2C%20Inc./Codeunit/QRCodeGenerator

Convert to ODataV4 URL by making necessary modification as below:

[ODataV4 URL]

https://api.businesscentral.dynamics.com/v2.0/1e4fc386-962e-4a20-8364-d5aeb65e2485/Test/ODataV4/QRCodeGenerator

Similarly, your $metadata URL will be:

https://api.businesscentral.dynamics.com/v2.0/1e4fc386-962e-4a20-8364-d5aeb65e2485/Test/ODataV4/$metadata

Run the metadata URL in browser:

Search for your function created above, you should get definition as below:

<Action Name=”QRCodeGenerator_GetQRSetImageAsJSON”>

<Parameter Name=”qRSetId” Type=”Edm.Int32″/>

<ReturnType Type=”Edm.String”/>

</Action>

Let’s test the above URL for function using Postman to see the result:

[POST] – https://api.businesscentral.dynamics.com/v2.0/1e4fc386-962e-4a20-8364-d5aeb65e2485/Test/ODataV4/QRCodeGenerator_GetQRSetImageAsJSON?Company=CRONUS USA, Inc.

Authorization:  Basic Auth

Username: ASHWINI.TRIPATHI

Password: xjAtAtTaFhgXkgR4M5WoHapotvJNmqJ5//XBYK2v5s4= (Web Service Access Key)

JSON Parameter to Function: (Body raw:JSON)

{

    “qRSetId” : “6”

}

Result Body:

{

    “@odata.context”: “https://api.businesscentral.dynamics.com/v2.0/1e4fc386-962e-4a20-8364-d5aeb65e2485/Test/ODataV4/$metadata#Edm.String&#8221;,

    “value”: “iVBORw0KGgoAAAANSUhEUgAAApQAAAKUAQMAAACAATp/AAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAGUExURQAAAP///6XZn90AAAAJcEhZcwAADsMAAA7DAcdvqGQAAAHtSURBVHja7dpbasMwEAXQ2YH3v0vvwKVBsZ44DZ4UWs58BEnMHH1eYjuO9NqZTCaTyWQymUwmk8lkMplMJpPJZDKZ/8KMsbb27Ls3St+2bmYymUwmM8Ws58N2b+FiXjQzmUwmk3nTLMN1qkPq6LqZyWQymczPmUdTwxVMJpPJZP6G+di0/7lqH5PJZDKZnzOnK7ZzW2tbNzOZTCaTmWIOtbXw9DM3M5lMJpOZYK6rPvSL9huJywkmk8lkMu+Yz0d9tR7HQ7INl9UWJpPJZDITzDIwv39arVbNTCaTyWRmmS0XbZ5Nq64uM47JZDKZzDfMdmrv4W47ZByTyWQymalm7S2rre0tq+eNxRw4JpPJZDITzDhjq8uu9p5udSLBZDKZTGae+UyxKd4GqWbc3MxkMplMZpZ5EXSdVPuYTCaTyUw12/kh1Dq4rVcZx2QymUzmG+aqinmcU12etdceTCaTyWSmmDHWkHaDNJ8xmUwmk5li1vM6GjFfu60nmEwmk8nMMuvUFGV7zPWjjGMymUwm87ZZt/Pqcc/wXJDJZDKZzE+apSXOV1TRf9HHZDKZTGaiub4i+ijb+48iDiaTyWQyM82h2rZYRFmsYpDJZDKZzHtmVjGZTCaTyWQymUwmk8lkMplMJpPJZDL/rHnsXwW1n/zFqtyZAAAAAElFTkSuQmCC”

}

Copy the Value and use any base64 – image converter tool, search on Google

You will get your QR Image:

Don’t try any URL or Passwords in this post as same is modified, and in images covered to hide actual url & passwords.

Hope you enjoyed learning from this post.

That’s all for this post, but visit again to learn from upcoming posts in this series, will post soon.

See you again in next post, till then keep exploring, learning and sharing with others.

Business Central, CDS, Common Data Services, Dataverse, Dynamics 365 Sales, Integration, Ownership, Permissions, Synchronize, Tip & Tricks, URL

Setup a connection to Dataverse

Integration with Business Central is done through Dataverse, and you will find lots of standard settings and tables that are provided by the integration.

This is the Second post in the series. If you want to go to previous post click here.

From the series of steps this post is dedicated to Step-1:

Create connection to integrate and synchronize data with another Dynamics 365 business app, such as Dynamics 365 Sales.

As a first Step we will setup a connection to Dataverse.

Before you start make sure you have below information ready with you:

  • URL for the Dataverse environment that you want to connect to
  • The user’s name and password of an account that has administrator permissions in Business Central and Dataverse.
  • The local currency for the company in Business Central must be the same as the base transaction currency in Dataverse.

From Assisted Setup under Connect with other systems group choose Set up a connection to Dataverse, as shown below.

This will start the Setup wizard, just follow and provide your information asked on each page.

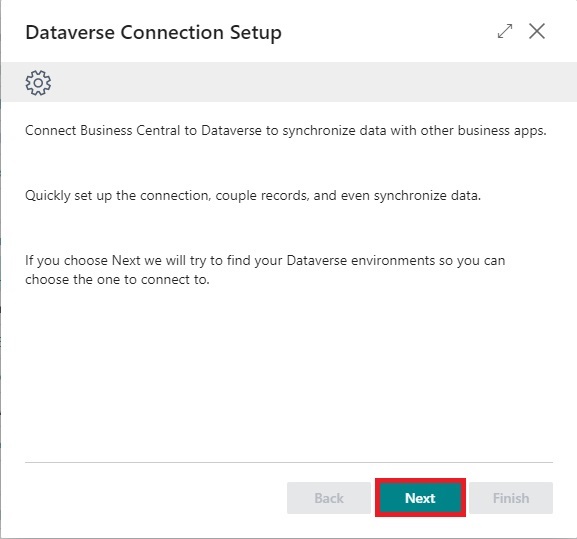

Click Next to Start configuring Dataverse & Business Central connection.

Here you can select your Dataverse Environment or can enter manually, above screen shows where you can find this url from.

Sign in with an administrator user account and give consent to the application that will be used to connect to Dataverse.


Choose Sign in with administrator user.

After Sign in with administrator user turns green and bold, choose Next.

Select Ownership and Click Next.

Click on Finish to complete the Setup.

Next open the Dataverse Connection Setup from TellMe.

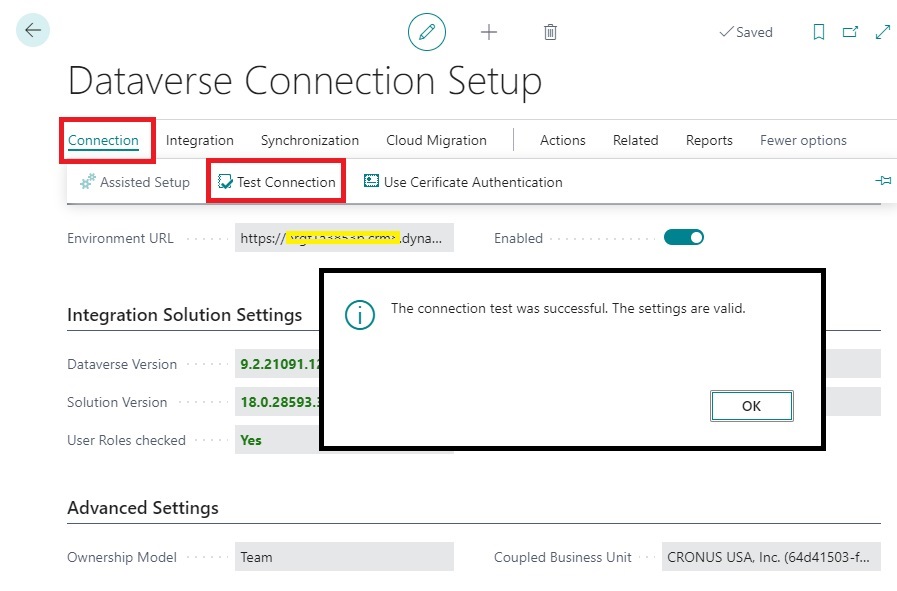

Select from Connection -> Test Connection

You can check Microsoft docs for more information

Connect to Microsoft Dataverse

If all are OK it should show the Connection test Successful message.

Now you are good to proceed with Next Step.

You can jump to Next Step from here.
