Azure, Azure Function Extension, Azure Functions, DotNet, Http Trigger, node.js, npm, nuget package, QR Code, QRCoder, SDK, Tip & Tricks, Visual Studio Code

Creating Azure Functions to generate QR Code

This is second post in this series, if you wish to see previous post, you can access here.

Today in this post I will discuss about first part, how to create Azure Functions.

Before we start, you need some installation to support creating Azure Functions. Use below Links to download & install these packages on the system, where you wish to write, compile & test the Azure functions.

Installation Links:

https://docs.npmjs.com/downloading-and-installing-node-js-and-npm

https://nodejs.org/en/download/

https://dotnet.microsoft.com/download/dotnet/thank-you/sdk-3.1.414-windows-x64-installer

Obviously, you must have an active Azure subscription, to create an Azure Functions App. If you don’t have, you can create an account that gives you a credit to explore Microsoft Azure for 30 days.

Head to Azure portal and sign in with your account.

Create New Function App.

Select your Azure subscription and a resource group or create a new one. Provide a name for your function app. This name will be the prefix for the URL.

You can select the .NET Core runtime and the region that matches your location. Select the Review + create button.

Now, you can create new functions. A function app can contain multiple functions. Each function will be available on:

Before you start to create Function, you need to Install dependencies:

  1. You should install Visual Studio Code
  2. You should also install Node.JS
  3. Run the following command to install the Core Tools package:

npm install -g azure-functions-core-tools@3 –unsafe-perm true

Create an Azure Functions project

Click the Create New Project… icon in the Azure: Functions panel.

You will be prompted to choose a directory for your app. Choose an empty directory.

You will then be prompted to select a language for your project. Choose dotnet.

Create a function

If you skipped to provide details, for Functions in above process, you can still initiate later.

Click the Create Function… icon in the Azure: Functions panel.

You will be prompted to choose a template for your function. Select HTTP trigger for getting started.

Screens will be same as shown in above process.

Sample project will be created

As per the information provided by you, in above screens.

KSDQRGenerator.cs auto generated file code will be as below:

using System;
using System.IO;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Azure.WebJobs;
using Microsoft.Azure.WebJobs.Extensions.Http;
using Microsoft.AspNetCore.Http;
using Microsoft.Extensions.Logging;
using Newtonsoft.Json;

namespace Company.Function
{
    public static class KSDQRGenerator
    {
        [FunctionName("KSDQRGenerator")]
        public static async Task<IActionResult> Run(
            [HttpTrigger(AuthorizationLevel.Anonymous, "get", "post", Route = null)] HttpRequest req,
            ILogger log)
        {
            log.LogInformation("C# HTTP trigger function processed a request.");

            string name = req.Query["name"];

            string requestBody = await new StreamReader(req.Body).ReadToEndAsync();
            dynamic data = JsonConvert.DeserializeObject(requestBody);
            name = name ?? data?.name;

            string responseMessage = string.IsNullOrEmpty(name)
                ? "This HTTP triggered function executed successfully. Pass a name in the query string or in the request body for a personalized response."
                : $"Hello, {name}. This HTTP triggered function executed successfully.";

            return new OkObjectResult(responseMessage);
        }
    }
}

Now you have the Http Template, we will make necessary changes as per our requirement.

In this example we will be using a library – QRCoder to generate the QR Code.

So first we have created a function with Http Trigger.

Made changes to the function as:

/*string name = req.Query["name"];

            string requestBody = await new StreamReader(req.Body).ReadToEndAsync();
            dynamic data = JsonConvert.DeserializeObject(requestBody);
            name = name ?? data?.name;

            string responseMessage = string.IsNullOrEmpty(name)
                ? "This HTTP triggered function executed successfully. Pass a name in the query string or in the request body for a personalized response."
                : $"Hello, {name}. This HTTP triggered function executed successfully.";

            return new OkObjectResult(responseMessage);*/

Replace this part as below code:

            string ReqData = req.Query["ReqData"];

            string requestBody = await new StreamReader(req.Body).ReadToEndAsync();
            dynamic data = JsonConvert.DeserializeObject(requestBody);
            ReqData = ReqData ?? data?.url;
            if (string.IsNullOrEmpty(ReqData))
            {
                return new BadRequestResult();
            }

            var generator = ReqData;
            var payload = generator.ToString();

            using (var qrGenerator = new QRCodeGenerator())
            {
                var qrCodeData = qrGenerator.CreateQrCode(payload, QRCodeGenerator.ECCLevel.Q);
                var qrCode = new PngByteQRCode(qrCodeData);
                var qrCodeAsPng = qrCode.GetGraphic(20);
                return new FileContentResult(qrCodeAsPng, "image/png");
            }

Final Code should look like this:

There are some errors, correct. Next step will resolve the same.

Next, we will add the QRCode nuget package to the dotnet core project using

dotnet add package QRCoder –version 1.4.1

Post completing the command execution, all errors are resolved.

Run your function project locally

Press F5 to run your function app.

The runtime will output a URL for any HTTP functions, which can be copied and run in your browser’s address bar.

Copy the URL of the function & Switch to browser:

In my case: http://localhost:7071/api/KSDQRGenerator?ReqData=Test

If you scan above QRCode, you will get ‘Test’ as we have passed this as a parameter (?ReqData=Test)

To stop debugging, press Shift + F5.

Deploy your code to Azure

Click the Deploy to Function App… () icon in the Azure: Functions panel.

Sign in to your Azure Account, if not done earlier. To test locally you need not to sign in to Azure. But at deployment is must.

When prompted to select a function app, choose KSDQRCodeGenerator (in my case), Function App Created on Azure portal in the starting of this blog post.

Confirm to deployment dialog.

On completion you will get the Live AZURE URL, use the URL in same way as for local, to pass parameter append at the end of URL as (?ReqData=Test)

Replace [Test] with the information for which you want to generate the QR Code.

That’s all for this post, but visit again to learn from upcoming posts in this series, will post soon.

See you again in next post, Till then keep exploring, learning and sharing with others.

Azure, Development Tips, How To, IIS, Information, Instalation & Configuration, NAV 2017, Tenerife, Tip & Tricks, What's New

Microsoft Dynamics NAV ‘Tenerife’ Developer Preview

As everyone is aware by now that Preview of Development Tools for Dynamics NAV have been released. Going forward which can be used to build extensions and apps in and for Dynamics NAV.

This tool introduces two flavors which you can try out in preview available on cloud.

[A] Make an extension in the client itself. Business consultants and UX designers will love using this drag-and-drop interface. Rearrange fields, rename groups, and reposition elements to build a perfect extension to support an industry-specific solution or implement a business process optimization.

[B] Use the AL Extension for NAV in Visual Studio Code to build powerful extensions based on tables, pages, and codeunits using the new objects: Page Extensions and Table Extensions. Follow this route to build rich extensions that reuse and extend core business logic in your application.

For more details you can refer to the article published by Dynamics NAV Team Announcing the Preview of Development Tools for Dynamics NAV

You can get a free 30-day trial from https://azure.microsoft.com/free/ that will give you access to everything you need.

Secondly, head over to http://aka.ms/navdeveloperpreview. Login to your Azure Subscription. Select your subscription, resource group, location, name, and a VM Admin Password. Leave the remaining fields as their defaults. Accept the terms, Pin to dashboard and select Purchase. The instance takes about 5 minutes to set up, and the VM will be ready about 15 minutes after Azure says Deployment Succeeded.

You need to follow on screen instructions to get everything setup using above 2 links provided.

I am not going to repeat the steps as you can find them via other blogs or follow the steps as you proceed via using above two links.

Few of my readers were complaining about they don’t have access to Azure Subscription or they have already used up the limit now what to do?

Same situation was with me too, but however I managed to get one and done bit RND, if this can be setup on my PC so that I can give it a try or others can use same steps to get it configured, and give it a try.

However I got succeeded in doing so, now I can do the same in my environment.

The Steps I am going to explain below is not the straight forward, and require bit tricks, as required components are yet not released from Microsoft, may we can get in CU-2,  I guess or later when Microsoft is OK to release this feature for everyone.

This action will require several pre-requisite to be fulfilled:

  1. Visual Studio Code (To be Installed)
  2. Dynamics Navision Version (10.0.14540)
  3. Some Modification to web.config to enable designer in Web Client



STEP-1

You can download the Visual Studio Code from this link: Click Here

Once file is downloaded install the Visual Studio Code by running VSCodeSetup-1.8.1.exe

And follow the on screen instructions to complete the setup.



td-01td-02td-03td-04td-05td-06td-07td-08td-09

STEP-2

Dynamics Navision Version

Make sure you have correct version of Dynamics Navision (10.0.14540)

td-10

Else you will not get this option in your Service Window

td-11

STEP-3

Modification to web.config

You will need to make necessary settings to web.config file to enable designer in Web Client, this file is located at C:\inetpub\wwwroot\DynamicsNAV100 location where your Web Client is installed.

td-12

td-13



Now you should be ok to use this feature in your environment.

Once things are setup correct you will be able to find the Client Designer Button on right top corner of the Client Window/Browser.

I will come up with more details in my up-coming posts till then keep exploring and learning.







Data, Development Tips, How To, Information, PowerBI.com, Tip & Tricks

App for Power BI REST APIs for Streaming Data

In this post we will see how to create app to use the Power BI REST APIs for Streaming Data.

Full documentation: https://powerbi.microsoft.com/documentation/powerbi-service-real-time-streaming/

To run this app follow the steps discussed in my previous post: [Real-Time Dashboard Tile & Streaming Dataset– in Power BI]

Summary as below:

  1. Go to app.powerbi.com
  2. Go to streaming data management page by via new dashboard > Add tile > Custom Streaming Data > manage data
  3. Click “Add streaming dataset”
  4. Select API, then Next, and give your streaming dataset a name
  5. Add a field with name “Customer ID”, type Number
  6. Add a field with name “Customer Name”, type Text
  7. Add a field with name “Sales Value”, type Number
  8. Click “Create”
  9. Copy the “push URL” and paste it as the value of “realTimePushURL” in below app

We will start with new project in Visual Studio.

RealTimeSync-12

Create a new Visual C# Console Application.

Open the Program.cs File and write a code as shown below.

This app Uses the WebRequest sample code as documented here: https://msdn.microsoft.com/en-us/library/debx8sh9(v=vs.110).aspx

RealTimeSync-13

For your easy here is the code of Program.cs below:



using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Threading.Tasks;

using System.Net;

using System.IO;



namespace RealTimeStreaming

{

class Program

{

// Paste your own push URL below as obtained from while creating Streaming Dataset and saved in step 9 above

private static string realTimePushURL = “https://api.powerbi.com/beta/4e7ca966-123e-4ce7-9833-3e858854b98f/datasets/7d154cd7-11e0-4d5e-9569-12fa3f82f224/rows?key=mD1nkJOf426PjPPaEQsW9xEg%2FN1EENQ2hRZvXIpHr%2BTXNk3XQpKsR2Jbe5CATiMoLmxjlzSp%2FIMlbe9HL8G4xQ%3D%3D&#8221;;

static void Main(string[] args)

{

while (true) { //Set Infinite Loop

try

{

// Declare values that we will be sending

Random r = new Random();

int currentValue = r.Next(0, 100);

String Name = “Dummy Name”;

// Send POST request to the push URL

WebRequest request = WebRequest.Create(realTimePushURL);

request.Method = “POST”;



//Here you will retrieve the data from the source and format as per the request.

//In this example we are sending Random Value generated by above code for testing purpose.

string postData = String.Format(“[{{ \”Customer ID\”: {0}, \”Sales Value\”:{1} }}]”, currentValue,currentValue);

Console.WriteLine(String.Format(“Making POST request with data: {0}”, postData));



// Prepare request for sending

byte[] byteArray = Encoding.UTF8.GetBytes(postData);

request.ContentLength = byteArray.Length;

// Get the request stream.

Stream dataStream = request.GetRequestStream();

// Write the data to the request stream.

dataStream.Write(byteArray, 0, byteArray.Length);

// Close the Stream object.

dataStream.Close();

// Get the response.

WebResponse response = request.GetResponse();

// Display the status.

Console.WriteLine(String.Format(“Service response: {0}”, ((HttpWebResponse)response).StatusCode));

// Get the stream containing content returned by the server.

dataStream = response.GetResponseStream();

// Open the stream using a StreamReader for easy access.

StreamReader reader = new StreamReader(dataStream);

// Read the content.

string responseFromServer = reader.ReadToEnd();

// Display the content.

Console.WriteLine(responseFromServer);

// Clean up the streams.

reader.Close();

dataStream.Close();

response.Close();

}

catch (Exception ex)

{

Console.WriteLine(ex);

}

// Wait 5 second before sending

System.Threading.Thread.Sleep(5000);

} //Infinite Loop ends here.

}

}

}

Compile and Run the Program.

RealTimeSync-14

Leave the Program Running and switch to Power BI dashboard. You will see your newly created Tile in previous post will be displaying the Random Value generated by this program updating every 5 seconds.

That’s all with little tweaking to this program you can fetch your data and send the updated data to your Real Time Streaming Dataset.

That’s end to this post.

I will come up with more details in my upcoming posts.

Till then keep Exploring and learning.





Announcement

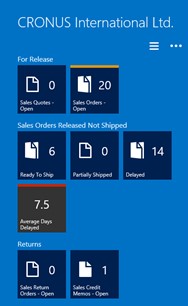

Announcing the Microsoft Dynamics NAV Universal App (Dynamics NAV v2.0)

Maybe you’re already familiar with Dynamics NAV on your tablet. Well, things just got even more flexible. You can now experience the power and simplicity of the Microsoft Dynamics NAV Universal App on your preferred iOS, Android or Windows device – be it phone, phablet, tablet, laptop, or desktop – it’s all up to you. Switch to your favorite device on the go, during meetings, in the office, at home on the couch using the same app, accessing your Dynamics NAV business data from everywhere.

For more details see below link :-

https://blogs.msdn.microsoft.com/nav/2015/10/22/announcing-the-microsoft-dynamics-nav-universal-app-dynamics-nav-v2-0/

Comment or Uncomment Selection

Commenting and uncommenting multiple lines of C/AL Code

We can add and remove comment marks manually for each line till now. But from now the Comment Selection and Uncomment Selection options available in the Edit menu. The Comment Selection and Uncomment Selection options enable you to comment or uncomment multiple lines of code all at once.

  • To comment lines of code, select the lines, and then, in the Edit menu, choose Comment Selection (Shift+Ctrl+K).
  • To uncomment lines of code, select the lines, and then choose Uncomment Selection (Shift+Ctrl+O).



Comment / UnComment Selection

Tablet Client

Microsoft Dynamics NAV Tablet Client

In Microsoft Dynamics NAV 2015 Microsoft introduced a new interface called Microsoft Dynamics NAV for Tablet. The Microsoft Dynamics NAV for Tablet allows users in small and medium sized businesses to access data from a tablet. Developing for Microsoft Dynamics NAV for Tablet is very similar to developing for the Microsoft Dynamics NAV Web client using the Microsoft Dynamics NAV Development Environment.

To open Microsoft Dynamics NAV for Tablet in browser mode

  • The Role Center for the default company

http://NavisionWebClient:7080/DynamicsNAV80/WebClient/tablet.aspx

  • The Role Center for a specific company

http://NavisionWebClient:7080/DynamicsNAV80/WebClient/tablet.aspx?company=CRONUS%20International%20Ltd.

  • A specific page

http://NavisionWebClient:7080/DynamicsNAV80/WebClient/tablet.aspx?page=22



Replace (http://NavisionWebClient:7080/DynamicsNAV80) with URL for Web Client in your environment.

How it looks:

Tab Screen

You will have to install below App: http://apps.microsoft.com/windows/en-in/app/d8a4908d-61f2-4740-b4fc-b559fbdd2e51
