Working with Alerts in Power BI

July 30, 2016 Ashwini Tripathi

Knowing about changes to important metrics quickly some time can help you taking quick decisions or help you keep eyes on things you care most.

With data driven alerts in Power BI, you can now get notifications when a metric you care about on your dashboard exceeds a set threshold.

Alert notifications will be sent to you as an email, and appear in your notification center on the web and in mobile apps.

You can set alerts for your numeric tiles featuring cards and gauges only. You have control over how often you want to be notified about your data, and whether you want to receive an email when your data goes beyond the limits you set.

Only you can see the alerts you set, even if you share your dashboard.

Alerts only work on data that is refreshed. When data refreshes, Power BI looks to see if an alert is set for that data. If the data has reached an alert threshold, an alert is triggered.

Alerts only work with numeric data types.

Alerts only work on data that is refreshed. They do not work on static data.

Today we will see how to work with Alert feature in Power BI.

Switch to your Dashboard.

I have one ready to use dashboard from my previous post to show Alert feature I am using the same.

As discussed above it works only for Numeric & Gauges Tiles only, for others you will not get even the Alert option.

Luckily I have one on my Dashboard, if want to learn how to create Numeric Tiles or more details on working with Power BI you can refer to any of my previous posts on Power BI. However you can find here one direct Link to the topic in question.

You see I have selected my Numeric Tile in below screen shot.

DataAlert-1

How to Set Data Alerts:

From a dashboard tile, select the ellipses.

Select the bell icon to add one or more alerts.

DataAlert-2

Click on Add Alert Rule.

To start, ensure the Active slider is set to ON, and give your alert a title.

DataAlert-3

Set your Condition, Threshold, and Notification Frequency also don’t forget to tick on send me mail too.

Click on Save to save your Alert.

Receiving alerts:

When the data being tracked reaches one of the thresholds you’ve set, several things will happen.

Power BI checks to see if time have lapsed or more than depending on the option you selected since the last alert was sent.

As long as the data is past the threshold, you’ll get an alert every hour or every 24 hours depending on option you selected.

If you’ve set the alert to send you an email, you’ll find something like as shown in below screen, this in your Inbox.

DataAlert-4

Power BI will add a message to your Notification center and adds a new alert icon to the applicable tile as shown in below screen.

DataAlert-5

Access to your Notification.

DataAlert-6

Manage alerts:

There are three ways to manage your alerts:

From the dashboard tile

From the Power BI Settings menu

On an individual tile in the Mobile App

DataAlert-7

As we have seen above how to create Alerts follow same steps to access Alert Window.

At the Left click on Expand make Necessary Modifications and save.

At the right select the trashcan to delete the Alert.

Select cancel to return to previous window.

DataAlert-8

From here you can turn alerts on and off, open the Manage alerts window to make changes, or delete the alert.

That’s all for today.

I will come up with more details in my upcoming posts.

Till then keep exploring and learning.

Dynamics 365, Functional Tips, How To, Information, Maderia, Tip & Tricks, What's New

Working with Item Attributes in Madeira

July 30, 2016July 30, 2016 Ashwini Tripathi

In Madeira you can assign item attribute values of different types to your items, which can then be used when searching for items.

Open your Item List/Card and in the right side of the window Factbox you see Item Attributes.

Today in this post we will see how to define, assign and use it for searching the items.

ItemAttribute-1

Either from the List Page or Card Page Select Attributes as shown in below screen shot.

From Home or Action Tab Ribbon.

ItemAttribute-2

It will show you all the Attributes and their Values assigned to the Item.

You can create New Attribute, Click on +New, a New Line will be inserted to Assign Attribute and its Value.

If you wish to create New Attribute for the Item from the Dropdown List click on +New.

ItemAttribute-3

Attribute definition window opens.

Define you New Attribute. Once Attribute is created you need to define available values for the same. In below Screen i have created New Attribute “TopMaterial”.

To define applicable values for this Attribute from Ribbon click on Item Attribute Values.

ItemAttribute-4

In Value window define all the applicable values and close the window.

ItemAttribute-5

You will be returned to the previous Page and you can see your Attribute and Value defined, just we created in our above steps. Click on OK to return to previous page.

ItemAttribute-6

Next we will Assign these Attribute and Values on the Item.

Select the Attribute and Value for the Item as shown in below screen.

After assigning click on OK to close the Page.

ItemAttribute-7

When you return to your Item Card or List Page you will see that your New assigned Attribute and its Value is displayed on Factbox.

ItemAttribute-8

Switch to your Item List Page.

From Ribbon click on Filter on Attribute a Filter window will open.

Select the Attribute and Value for filter that you want to assign.

Click on OK to apply the filter on the page.

ItemAttribute-9

Since we have asigned this Attribute and Value on one Item, It will be filtered and all Items satisfying the filter condition will be displayed.

ItemAttribute-10

The items in the Items window are filtered by the specified item attribute values.

Thats all for this post.

I will comeup with some more details in my upcoming posts.

Till then keep exploring and learning.

Development Tips, Functional Tips, How To, Information, Jet Reports, Tip & Tricks

Gaining the Competitive Advantage with BI

June 30, 2016 Ashwini Tripathi

See how a robust business intelligence solution can help you leverage technology in order to gain new visibility on your business that will enable profitable, data-driven decisions on a daily basis.

Video-1

Video-2

Corfu Navision 2016, Development Tips, How To, Information, Instalation & Configuration, License, Server, Tip & Tricks, Virtual

Working with Partner Translation Toolkit

May 28, 2016 Ashwini Tripathi

In my earlier post I have given the overview of Managing Multilanguage support in Navision continuing from same today I will discuss about how to create Language Module for the Languages not available from Microsoft.

Although still we will not be having direct support for all Languages but using this process you can create one.

To be very fair it will not be easy task for all Languages but for few it could help you much to get you work done with little ease.

See few helpful links which will help you getting done your task:-

Platform strings maintained in managed assemblies and fin.stx and fin.etx files

Configuring Microsoft Dynamics NAV Help Server

To work with Partner Translation Toolkit you will require below, make sure you have all before you start with using this Tool:

Visual Studio
WiX Toolset
Microsoft Translator for ResX
Azure Data Market account
Microsoft Translator data service subscribed
Your NAV License File
Finally your efforts

Visual Studio:

If you don’t have make sure you install the latest version of the same.

WiX Toolset:

You will require the WiX Toolset to start with you can download from here. Install WiX Toolset version 3.8 or 3.9

Install the WiX Toolset according to the instructions. In my case it is already installed on my system so getting option for Uninstall.

Building the project you require that you have the WiX Toolset version 3.8 or 3.9 installed on the computer.

Microsoft Translator for ResX:

See my previous post for more details here.

Azure Data Market account / Microsoft Translator data service:

See my previous post for more details here.

Steps to get ready for Translation tool:

See my previous post for more details here.

Let’s start with building our project:

Step -1:

Run the “Microsoft.MCSUK.RESXTranslator.exe” Tool

See my previous post for more details here.

Step -2:

Run the “Visual Studio” with opening project solution PartnerTranslations.sln

You will see all the projects discussed above is having their own folder in this solution.

Add your all the translated resx files obtained in Step-1 post Translation to respective projects.

Right click on the project folder and choose Add and then Existing Item.

Select the resx file which we translated in Step-1.

In my case I select “Common.Language.Lang.hi-IN.resx”

Similarly you will add these translated files to your all other projects. Be cautious few may have 2-3 files add them all.

The properties of the installation determine which folders are created during the installation of the language packs and what files are placed in the folders. The properties can be found in the Locals.wxi file located in the root directory of the translation kit. Open the Locals.wxi file and change the following properties:

• CountryRegionCode, to one of the country/region codes in Globals.wxi or create a new.

• ModuleLanguage, to the language of your choice.

• LocalLangFolder, to the .Net culture of the satellite assemblies.

• LocalIsoFolder, to the three letter ISO code for your language.

Step -3:

Build the project PartnerTranslations.sln

To build the PartnerTranslation solution from inside Visual Studio, choose Build Solution from the Build menu. This will pick up all translated artifacts, and create three installer files (.msi):

Server.msi – Located in the Server\Bin\Debug folder.
RTC.msi – Located in the RTC\Bin\Debug folder.
WebClient.msi – Located in the WebClient\Bin\Debug folder.

Step-4:

Copy your Language Module Files and install on desired Server & Client

Install – Add your language pack to the W1 version

If have not already done so, install the W1 version of Microsoft Dynamics NAV 2016 from the product media.

Install the new language Pack

Next, install the new language pack on the same computer. To do this, select and click each of the three .msi files listed below, one after the other. The order is not significant:

Server\Bin\Debug\Server.msi
RTC\Bin\Debug\RTC.msi
WebClient\Bin\Debug\WebClient.msi

Each installer quickly shows a dialog, which disappears when the installer has completed.

The language pack is now installed, but you must make some final configuration.

I will comeup with more details in my next posts.

Corfu Navision 2016, Data Encryption, Functional Tips, How To, Information, Instalation & Configuration

Working with Data Encryption in Navision 2016

November 2, 2015November 2, 2015 Ashwini Tripathi

You can encrypt data on the Microsoft Dynamics NAV Server by generating new or importing existing encryption keys.

How to: Enable Encryption Keys

You can enable data encryption on the Microsoft Dynamics NAV Server instance that connects to the database.

Open the Data Encryption Management Card, as path suggested in below Image.

Click on Enable Encryption in Process of Home tab.

On Confirmation Dialog box choose Yes.
On further Confirmation of Password choose Yes.

Enter the Password as defined in Rule as shown in below Image.

Upon entering Password choose OK to continue.
Key is created with password protected and offered to Export.

Choose Save, and save it as Safe Location as you will require it again whenever you restore the database or Import Export the data. Please make sure you also store the password for further reference whenever required.

Once Key is generated, you can see that the Encryption Enabled & Encryption Key Exists is checked TRUE.
Also in Ribbon you will find the Change Encryption Key, Export Encryption Key & Disable Encryption is now enabled.

If Microsoft Dynamics NAV is configured with multiple service tiers (Microsoft Dynamics NAV Server instances), then you must first enable encryption on one server instance, and then export the key and import to other server instances where you enable encryption.

If you export companies and other data that is secured by data encryption, then remember to also export the encryption key so that you can access the data after you import it into another database, for example when you restore a backup. Creating a backup of encrypted data involves the following high-level steps.

Export the data from one database.
Export the data encryption key.
Import the data into another database.

Import the data encryption key.

How to: Export and Import Encryption Keys

Note: You cannot generate different keys within one multiple-server instance environment.

Exporting an Encryption Key

You export an encryption key to make a copy of the key or so that it can be imported on another server instance.

Exporting an encryption key stores the encryption key that is used by the current server instance to a file on your computer or network.

To export an encryption key

On the message about saving the encryption key, choose Yes.

In the Set Password window, enter the password that will protect the exported key file, and then choose OK.

In the Export File window, choose Save, choose a safe location where the key file is stored, and then choose Save.

Importing an Encryption Key

You can import an encryption key to a server instance from an encryption key file that was exported from another server instance or saved as a copy when the encryption was enabled.

You cannot import an encryption key on a server instance that already includes an encryption key. In this case, you must change the encryption key instead.

To import an encryption key

On the Home tab, in the Process group, choose Import Encryption Key.
In the Select a key file to import window, choose the encryption key file, and then choose Open.

In the Password window, enter the password that protects the key file, and then choose OK.

Changing an Encryption Key

If a server instance already has an encryption key, then you can replace the current encryption key with an encryption key that is stored in an encryption key file that was exported from another server.

To change an encryption key

On the Home tab, in the Process group, choose Change Encryption Key.

In the Select a key file to import window, choose the encryption key file, and then choose Open. Same as in above process.
In the Password window, enter the password that protects the key file, and then choose OK. Same as in above process.

Corfu Navision 2016, Functional Tips, How To, Information, Instalation & Configuration, Profiles

Working with Profiles in Navision 2016

November 2, 2015November 2, 2015 Ashwini Tripathi

How to: Create a Profile

You use the Profile card to create profiles for end users. Each profile is associated with a Role Center. Profiles are typically based on job titles in a company.

To create a profile

In the Profile ID field, enter a name that describes the intended role of the user.
In the Owner ID field, click the AssistEdit button to view all available logins, and then select a Windows user.
In the Description field, enter a description of the Profile ID, for example, Order Processor.
In the Role Center ID field, click the AssistEdit button to view all available Role Centers. Select a Role Center.
To make this Role Center the default for the profile, select Default Role Center.
Click OK to save your changes.

The procedure for modifying an existing profile is the same, except you select an existing profile in the Profiles page instead of clicking New.

How to: Assign a User to a Profile

You use the User Personalization page to assign a user to a profile.

To assign a user to a profile

In the User Personalization window, fill in the fields described in the following table.

Field	Description
User ID	Choose the AssistEdit button to view all available user logins, select the relevant user, and then choose the OK button.
Profile ID	Select a profile ID that you have already created. Choose the AssistEdit button to view all available profiles.
Language ID	Select the appropriate language ID, or leave this field blank.
Company	Select a company from the Companies window.

Choose the OK button.

Note The Language ID and Company values are overwritten by user values when the user starts a session.

How to: Open Microsoft Dynamics NAV in Configuration Mode

To configure a profile, for example to customize the profile’s user interface, you must open the Microsoft Dynamics NAV Windows client in configuration mode.

To open the Microsoft Dynamics NAV Windows client in configuration mode

At the command prompt, navigate to the root folder of the Microsoft Dynamics NAV Windows client. For example:

cd C:\Program Files (x86)\Microsoft Dynamics NAV\90\RoleTailored Client

Type the following command:

Microsoft.Dynamics.Nav.Client.exe -configure -profile:”profileid”

Replace profileid with the name of the profile that you want to configure.

Important You must be the owner of a profile to open it in configuration mode

For example, to configure the Accounting Manager profile, use this command to open the Microsoft Dynamics NAV Windows client in configuration mode:

Microsoft.Dynamics.Nav.Client.exe -configure -profile:”Accounting Manager”

Office Integration

Integrating with Microsoft OneNote With Navision 2015

July 14, 2015July 14, 2015 Ashwini Tripathi

You can set up Microsoft Dynamics NAV to work with Microsoft OneNote.

For example, you can use OneNote integration to synchronize notes from a mobile OneNote installation with Microsoft Dynamics NAV. You can also use OneNote to share pictures, recordings, and other instructions across a company.

When you set up OneNote integration, you can enable adding notes to a particular record or to a complete page

Note: You cannot set up Microsoft Dynamics NAV to work with OneNote in multitenant deployments.

With Microsoft OneNote integration you can attach notes to customers, items, or invoices.

OneNote notes can be created for a specific record, but also for a whole page depending on the setup.

You can attach notes, reminders, or pictures to a specific record such as a customer. You can also create a note attached to a whole page, so there are separate instructions about how to deal with customers, items, or journals.

Pages notes can only be used on pages that are based on a source table. This means that, for example, the Role Center page cannot use page notes.

Note: OneNote integration lets users share their OneNote repository, which means that information in a shared OneNote repository can be read by all persons having access to that repository.

Let’s start with creating background which we will use in Setting up our solution, I am using Local folders to configure my OneNote.

Here I have created two Folders

PageNotes
RecordNotes

How to access PageNote & RecordNote.

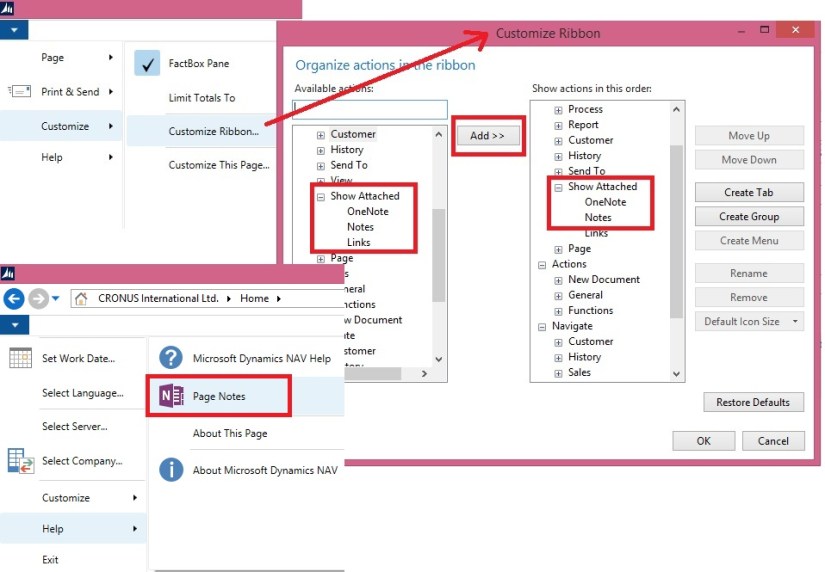

If OneNote not visible on Pages you can add the same as below:

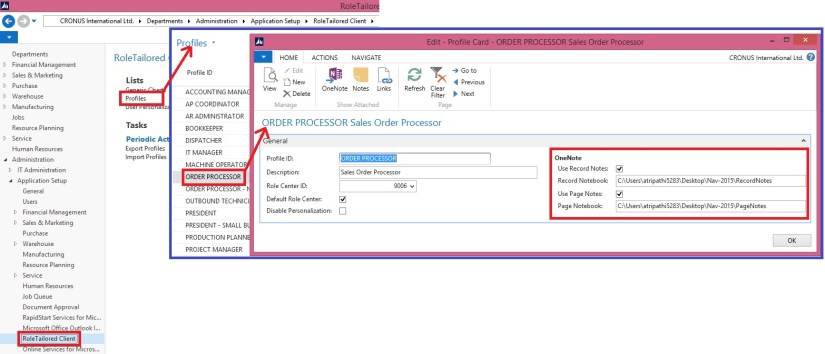

To set up OneNote integration for a group of users

In the Search box, enter Profiles, and then choose the related link.
Select the profile to make the OneNote adjustments for.
On the Home tab, choose Edit.
Select the Use Record Notes check box.
In the Record Notebook field, enter the path where Microsoft Dynamics NAV should access the notebook.

Note: You can find this information in Microsoft OneNote using the File tab. Select the OneNote book that you want to use, this can be shared among the books listed in Notebook Information or you can create a new one. Copy the location path for the notebook.

You may want to use customization to promote the OneNote action to the ribbon for easy accessibility.

If want to us Page Note too follow below steps:

Select the Use Pages Notes check box.
In the Page Notebook field, enter the path where Microsoft Dynamics NAV should access the notebook.
Choose the OK

Note: The RoleTailored client must be restarted for the changes to have effect.

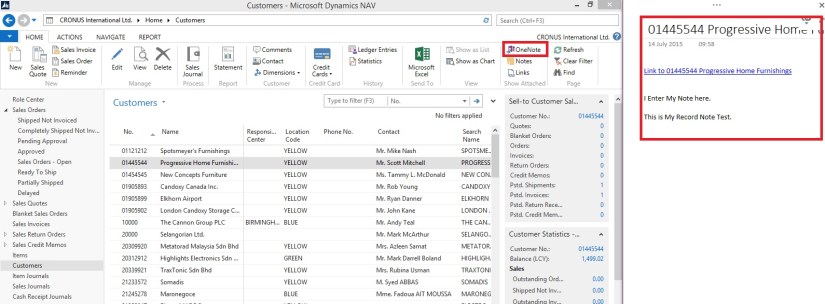

Using Record Notes

From any Page Select OneNote, Note For selected record will be available to record.

Your One Note File is created in the specified Folder:

Accessing the Record Notes:

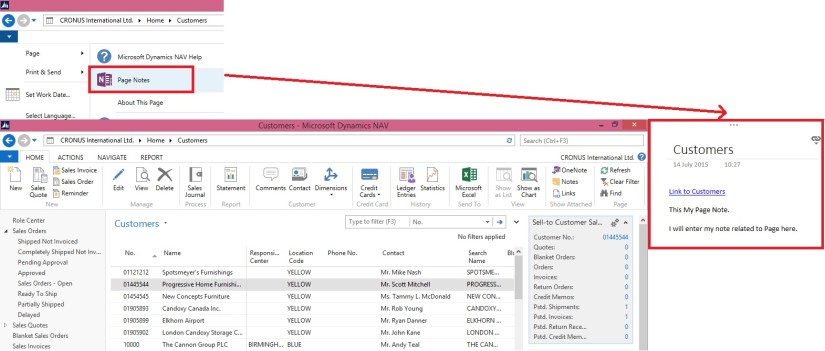

Using Page Notes

From any Page Select PageNote, Note For active Page will be available to page.

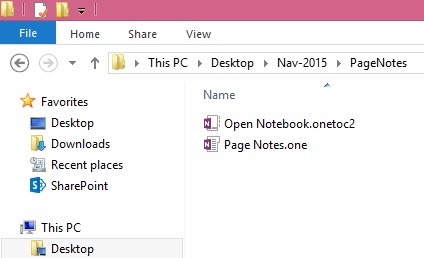

Your Page Note File is created in Specified folder

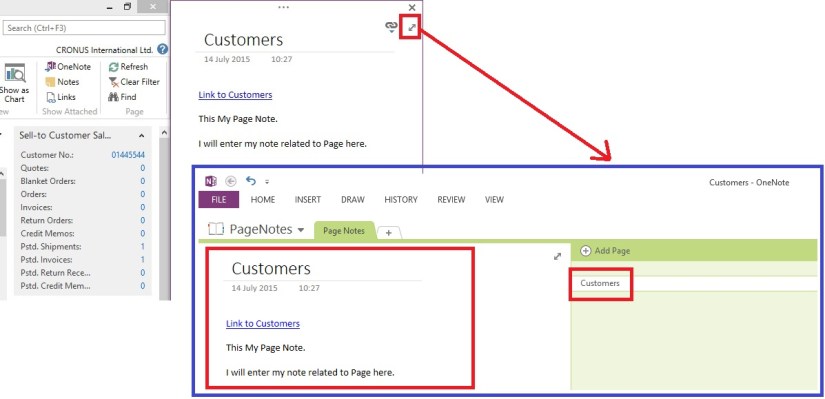

Accessing the Page Note

Try using it, it’s Simple and Very useful.

Rate this:

Share this with:

Like this:

Rate this:

Share this with:

Like this:

Rate this:

Share this with:

Like this:

Rate this:

Share this with:

Like this:

Rate this:

Share this with:

Like this:

Rate this:

Share this with:

Like this:

Rate this:

Share this with:

Like this:
